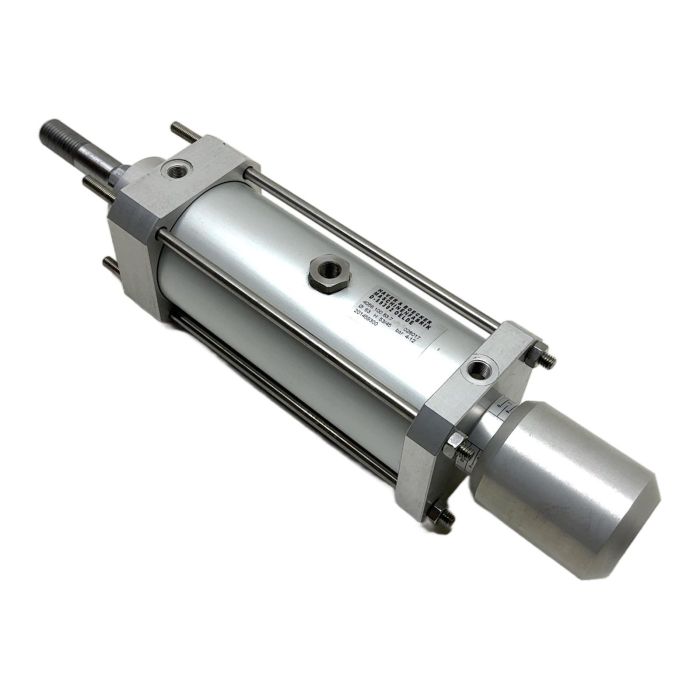

Haver & Boecker 63mm Bore Pneumatic Cylinder

Description

This is a pneumatic tie-rod cylinder from Haver & Boecker, part number 4056.100.83.7. It is designed for reliable linear actuation in industrial environments. As an original equipment manufacturer (OEM) part, it is intended for use in specific Haver & Boecker machinery, providing precise performance and durability. This cylinder features a 63 mm bore and is rated for a pressure range of 4 to 12 bar.

Specifications

• Manufacturer: Haver & Boecker
• Type: Pneumatic Tie-Rod Cylinder
• Bore Diameter: 63 mm
• Stroke: 53/45 mm
• Operating Pressure: 4-12 bar

Label Info

• Part Number: 4056.100.83.7
• Serial Number: 201459300
• Additional ID: 028017

Application

This cylinder is ideally suited as a direct replacement part for Haver & Boecker packaging machines or other automated systems where this specific component is integrated. Its robust construction makes it suitable for demanding industrial applications requiring precise pneumatic control.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned part, you are contributing to a circular economy and helping to reduce industrial waste. Opting for this component saves an estimated 26 kg of CO2 compared to manufacturing a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the "H: 53/45" specification on the label mean?

This notation typically refers to the stroke length of the cylinder. While uncommon, it could indicate a special dual-stroke function or specific extend and retract lengths required for the Haver & Boecker machine it was designed for. It should be interpreted as having a primary stroke of around 50 mm.

While it shares visual characteristics with ISO 15552 standard cylinders, such as the tie-rod construction and profile barrel, as an OEM part (4056.100.83.7) it may have non-standard dimensions for mounting, rod threading, or stroke length to fit a specific Haver & Boecker machine. Always verify dimensions against your existing part.

This cylinder does not appear to have integrated grooves for standard C-slot or T-slot sensors. To monitor piston position, you would likely need to use external sensors or mechanical switches actuated by the cylinder's movement, or potentially clamp-on style sensors if the cylinder body is non-magnetic (aluminum).
