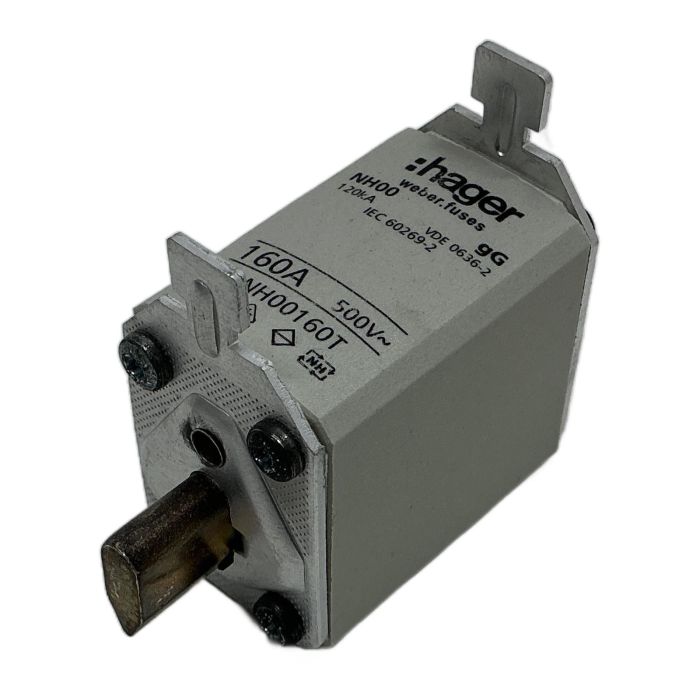

Hager NH Fuse Link 160A 500V LNH00160T

Description

The Hager LNH00160T is a high-quality NH fuse link designed for reliable overcurrent protection in industrial and commercial low-voltage systems. With a nominal current of 160A and a voltage rating of 500V AC, this fuse provides excellent protection against both overloads and short circuits. Its gG characteristic makes it suitable for general-purpose applications, primarily for cable and line protection.

Specifications

• Manufacturer: Hager
• Type Number: LNH00160T
• Rated Current: 160 A
• Rated Voltage: 500V AC
• Fuse Size: NH00
• Characteristic: gG
• Standard: IEC 60269-2
• Breaking Capacity: 120 kA

Label Info

• Brand: Hager
• Model: LNH00160T
• Specs: 160A, 500V~, NH00, gG
• Standards: VDE 0636-2, IEC 60269-2

Application

This fuse link is ideal for use in industrial distribution boards, switchgear, and fuse disconnectors to protect machinery, power lines, and other electrical equipment from the damaging effects of overcurrents.

Country of Origin

This product is manufactured in France.

CO2 Impact

By choosing this reused fuse, you are helping to avoid 7.2 kg of CO2 emissions compared to purchasing a new one. This is a sustainable choice for your operations.

Availability

Available from stock for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'gG' characteristic indicates a general-purpose fuse link for full-range breaking capacity. It is designed to protect cables and lines against both overloads and short circuits, making it suitable for a wide range of industrial applications.

While some AC fuses have a DC rating, it is typically much lower than the AC voltage rating due to the difficulty of extinguishing a DC arc. This fuse is specifically rated for 500V AC. Using it in a DC circuit, especially at high voltages, is not recommended without consulting the Hager technical datasheet for a specific DC rating.

NH00 is a standardized physical size for blade fuses according to DIN standards. This ensures interoperability between different manufacturers' fuse links and fuse bases. The NH00 size has a specific blade spacing and body dimension, corresponding to its current rating range.
