Winkhaus Connecting Rod and Striker Plate

Description

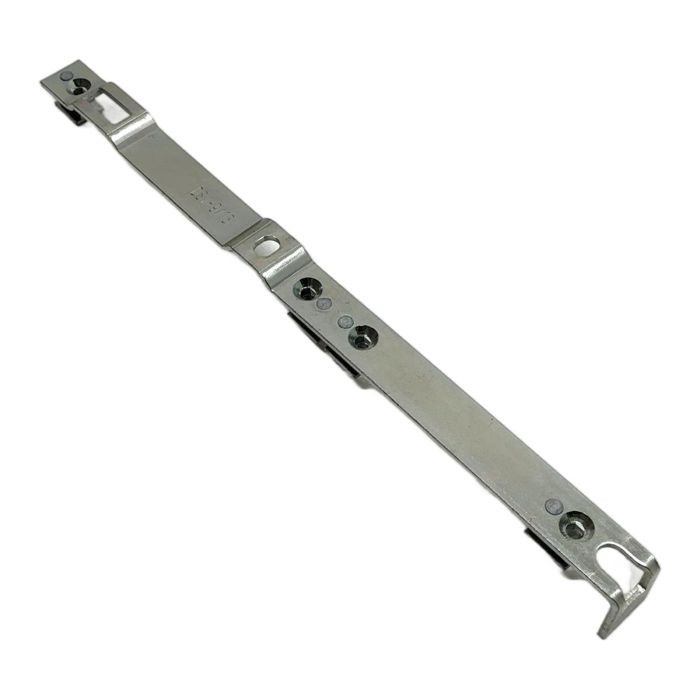

This is the DSV-9/13, a robust connecting rod and striker plate assembly from Winkhaus. It is an essential component for multi-point locking mechanisms commonly found in windows and doors, providing enhanced security and a proper seal. Made from high-grade steel, it is designed for longevity and reliable operation. This part is ideal for repairing or replacing worn or damaged components in your existing Winkhaus hardware system.

Specifications

• Manufacturer: Winkhaus
• Part Number: DSV-9/13
• Product Type: Connecting Rod / Striker Plate
• Material: Steel
• Application: Window and door hardware, multi-point locking systems

Label Info

• Model: DSV-9/13

Application

Specifically designed for integration into Winkhaus window and door locking systems. It serves as a critical link in the hardware mechanism, ensuring that locking points engage correctly and securely. It is suitable for both professional installation and DIY repairs on compatible fenestration systems.

Country of Origin

This product is manufactured in Germany.

CO2 Impact

By purchasing this refurbished or surplus hardware part, you are contributing to a circular economy and helping to prevent 0.4 kg of CO2 emissions compared to buying a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The DSV-9/13 has specific dimensions and mounting hole spacings. It's crucial to measure your old part's overall length, the distance between the mounting holes, and check the shape of the cutouts and end pieces. Compare these measurements directly with the product specifications or technical drawings to ensure a perfect fit.

This part is specifically designed as part of the Winkhaus locking system. While it might physically fit in some other systems, we cannot guarantee compatibility or proper security function. For optimal performance and security, it is strongly recommended to use it only with compatible Winkhaus hardware.

Like all moving parts in a window mechanism, the DSV-9/13 benefits from periodic light lubrication. Use a resin-free and acid-free oil or a suitable hardware lubricant once a year on the moving parts and contact surfaces. Also, ensure the mounting screws remain tight and the area is free of debris.
