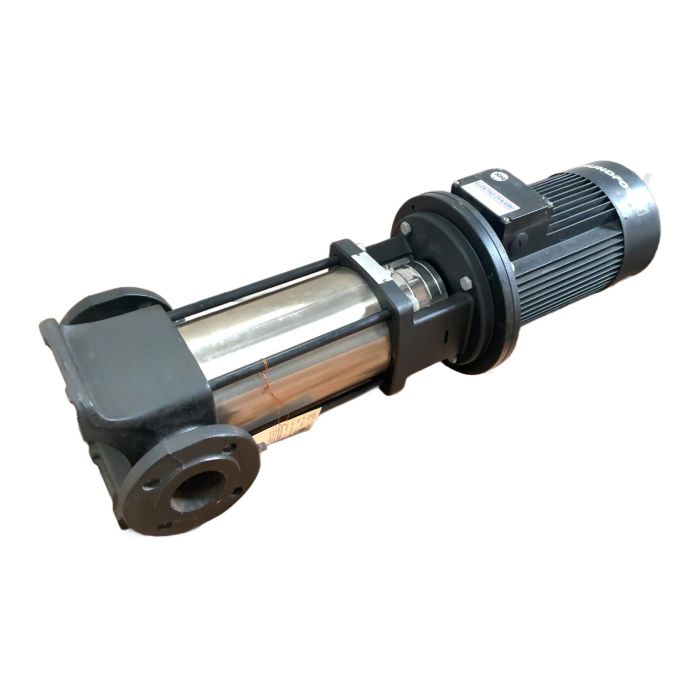

Grundfos CR16-50 Pump with 5.5 kW Motor

Description

This is a complete Grundfos pump unit, featuring the highly reliable CR16-50 vertical multistage pump coupled with a 5.5 kW Grundfos MG motor. Known for their efficiency and durability, Grundfos CR pumps are a top choice for industrial and commercial applications requiring constant pressure and flow. This unit is built for performance in water supply, pressure boosting, and process water systems.

Specifications

• Manufacturer: Grundfos
• Pump Type: CR16-50 A-F-A-BUBE
• Motor Type: MG 132SA2-38FF265
• Power Rating: 5.5 kW (7.5 HP)
• Voltage: 380-415V at 50Hz / 380-480V at 60Hz
• Nominal Speed: 2900 RPM
• Nominal Flow Rate: 16 m3/h
• Nominal Head: 58.4 m
• Maximum Pressure: 16 bar
• Maximum Fluid Temperature: 120 deg C
• Connections: DIN Flanges
• Shaft Seal: BUBE (SiC/SiC/EPDM)

Label Info

• Pump Type: CR16-50 A-F-A-BUBE
• Pump Production Code: B33500005P19525
• Motor Part No: 85811217

Application

Ideal for applications such as industrial water pressure boosting, boiler feed systems, water treatment plants (e.g., reverse osmosis), and general liquid transfer in industrial processes.

Country of Origin

Made in Denmark (DK).

CO2 Impact

By purchasing this pre-owned pump, you help avoid the emission of approximately 480 kg of CO2 required for the production of a new one. This saving is comparable to the emissions of driving a car for 2400 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the 'BUBE' code in the type number CR16-50 A-F-A-BUBE signify?

The 'BUBE' code specifies the shaft seal configuration. It stands for a balanced seal with Silicon Carbide rotating and stationary parts (SiC/SiC) and EPDM rubber parts, which is suitable for a wide range of water and non-corrosive liquid applications.

Yes, this standard Grundfos MG induction motor is designed to be compatible with a Variable Frequency Drive (VFD). This allows for precise control of the pump's performance and significant energy savings in variable demand systems.

The 'F' in the type number indicates DIN standard flanges. For a CR16 pump, these are typically DN50 flanges rated for PN16, although it is always best to verify the exact dimensions before installation.
