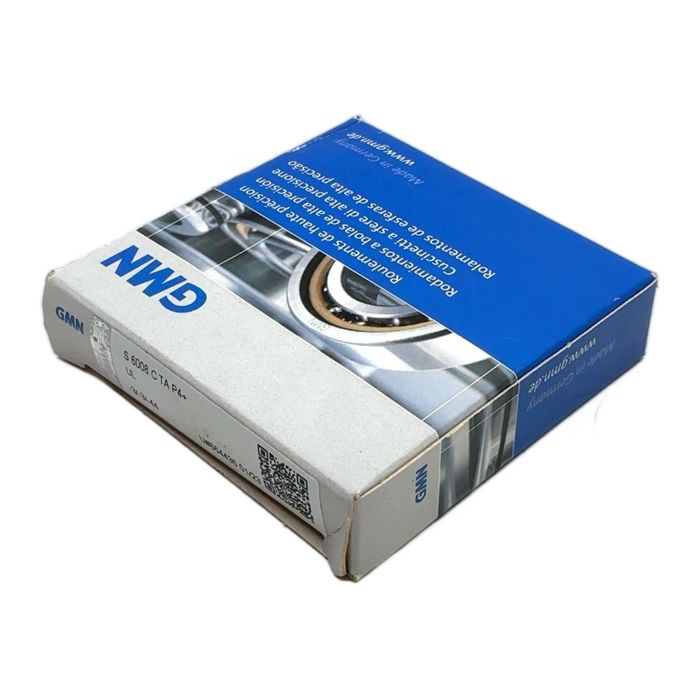

GMN S 6008 C TA P4+ High Precision Spindle Bearing

Description

This GMN S 6008 C TA P4+ is a top-tier, high-precision angular contact ball bearing, engineered in Germany for applications demanding the highest levels of speed, accuracy, and system rigidity. It is an essential component for machine tool spindles, high-frequency motors, and other precision machinery where performance cannot be compromised.

Specifications

• Bore Diameter: 40 mm
• Outer Diameter: 68 mm
• Width: 15 mm
• Contact Angle: 15 degrees (C)
• Cage Material: Textolite (phenolic resin), outer ring guided (TA)
• Precision Class: P4+ (finer tolerances than ABEC 7)
• Preload: Light, for universal matching (UL)
• Material: High-purity bearing steel

Label Info

• Manufacturer: GMN
• Part Number: S 6008 C TA P4+
• Order Code: U#664436
• Production Date: January 2023

Application

Ideally suited for main spindles in machine tools, including high-speed milling, grinding, and turning centers. Also used in turbochargers, vacuum pumps, and other high-speed rotating equipment.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this pre-owned, high-quality component, you are actively participating in the circular economy. This choice prevents the need for new manufacturing, saving an estimated 0.4 kg of CO2 emissions.

Availability

This item is in stock and available for immediate worldwide shipment. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What does the 'TA' designation signify in this bearing's part number?

The 'TA' code specifies the cage type. It stands for a Textolite (phenolic resin) cage that is guided by the outer ring. This design is optimal for very high speeds and provides excellent lubrication properties.

Yes, the 'UL' designation means 'Universal, Light Preload'. This indicates the bearing is manufactured to tight tolerances that allow it to be mounted in pairs (or sets) in any configuration (back-to-back, face-to-face, or tandem) to achieve the desired system rigidity and load capacity.

For optimal performance and longevity, a P4+ precision bearing typically requires high-speed grease or an oil-air lubrication system. The choice depends on the specific application's speed factor (n x dm). Always consult the machine manufacturer's guidelines for the correct lubricant type and quantity.
