GISS H315 Adapter Sleeve for 70mm Shaft

Description

The GISS H315 is a high-quality adapter sleeve designed for mounting tapered bore bearings onto cylindrical shafts. This component simplifies the mounting process, ensures a secure fit, and allows for wider shaft tolerances. It is a standard component used across many industries for reliable and efficient machinery operation.

Specifications

• Type: Adapter Sleeve
• Model: H315
• Shaft Diameter (d1): 70 mm
• Material: Steel

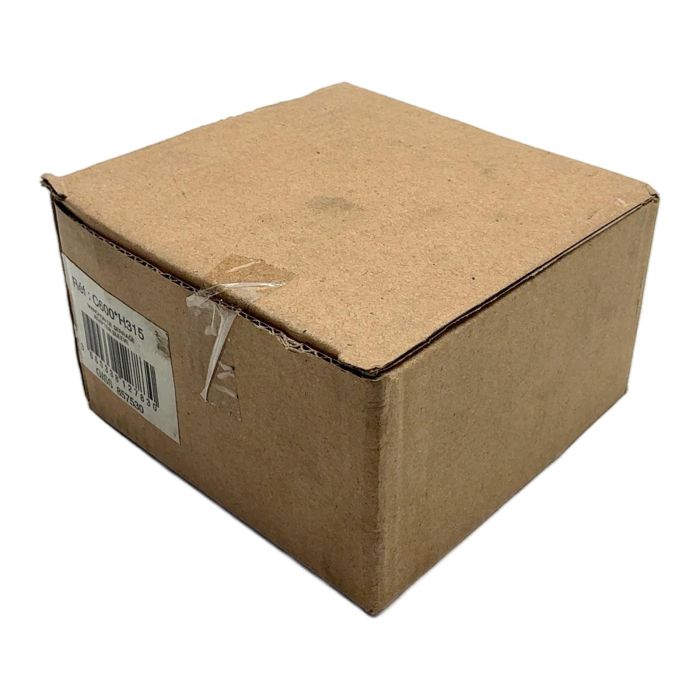

Label Info

• Brand: GISS
• Reference: C600*H315
• GISS Part Number: 857530
• EAN: 3560335127830

Application

Adapter sleeves are the most commonly used components for locating bearings with a tapered bore onto a cylindrical shaft seating. They can be used on plain shafts or stepped shafts. They are easy to install and require no additional location on the shaft.

CO2 Impact

Opting for this component instead of a new one saves approximately 2.8 kg of CO2. This is comparable to the emissions from driving a standard car for 14 kilometers. By choosing reused industrial parts, you contribute to a more sustainable industry.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the correct procedure for tightening an H315 adapter sleeve?

Answer

The H315 sleeve should be tightened using a hook spanner (e.g., HN 15) on the integrated locknut. Tighten until the bearing's internal clearance is reduced by the specified amount, which can be measured with feeler gauges. Refer to the bearing manufacturer's handbook for the exact clearance reduction values.

Question?
Which bearings are compatible with the H315 adapter sleeve?

Answer

The H315 sleeve is designed for a 70mm shaft and is compatible with several types of bearings with a tapered bore, including self-aligning ball bearings (e.g., 1315), spherical roller bearings (e.g., 21315, 22315, 2315), and CARB toroidal roller bearings (e.g., C 2315).

Question?
What is the material and surface treatment of this adapter sleeve?

Answer

This GISS adapter sleeve is typically made from high-quality steel to ensure strength and durability. The surfaces are precision-ground for a proper fit, and it may have a light oil coating to prevent corrosion during storage.
