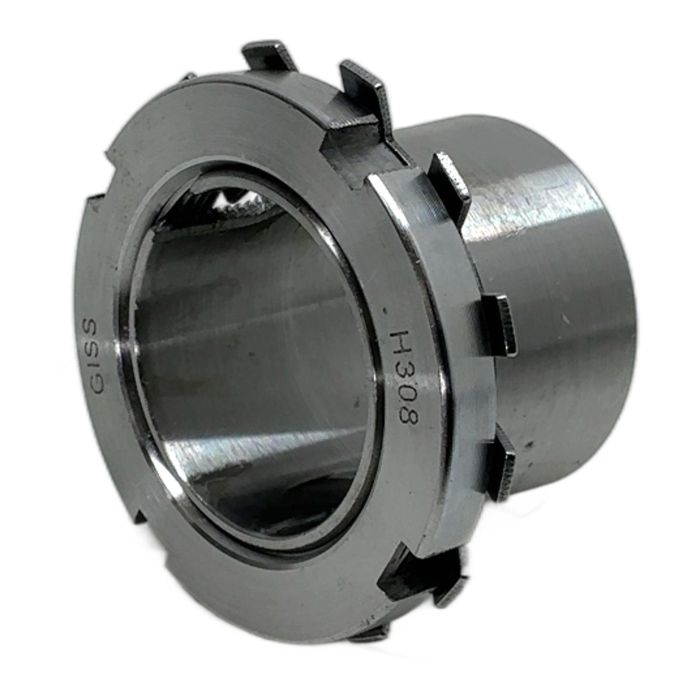

GISS H308 Adapter Sleeve for 35mm Shafts

Description

This GISS H308 is a high-quality adapter sleeve designed for securely mounting bearings with a tapered bore onto a 35mm diameter cylindrical shaft. Adapter sleeves are a versatile and widely used solution, allowing for easy installation and removal of bearings on both plain and stepped shafts without the need for special shaft machining.

Specifications

• Manufacturer: GISS
• Type: Adapter Sleeve
• Model: H308
• Shaft Diameter (d1): 35 mm
• Compatible Bearing Bore (d): 40 mm
• Material: High-grade steel for durability and strength

Label Info

• Brand: GISS MECALINE
• Ref: C600*H308
• Part Number: 857508
• EAN: 3660338127117

Application

Commonly used in a wide range of industrial applications, including conveyor systems, agricultural machinery, fans, and industrial gearboxes, where reliable bearing mounting is essential.

Country of Origin

Manufactured in France.

CO2 Impact

By purchasing this reused component, you avoid the production of a new one, saving approximately 0.34 kg of CO2. This is a small but meaningful contribution to reducing industrial emissions.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What components are needed to correctly install an H308 adapter sleeve?

Answer

To properly install an H308 adapter sleeve, you will need the corresponding bearing (e.g., 1308, 2308, 22308), a lock nut (KM8 or KMFE 8), and a locking washer or clip (MB8 or MS 3008-08). These components secure the bearing onto the sleeve and the sleeve onto the shaft.

Question?
What is the correct procedure for tightening the H308 sleeve?

Answer

The sleeve should be pushed into the bearing bore, and the assembly mounted on the shaft. The lock nut is then tightened to drive the bearing up the tapered seat of the sleeve. This reduces the bearing's internal radial clearance. Tightening should be done carefully, often using the angle of rotation method or by measuring the clearance reduction, to avoid over-tightening and damaging the bearing.

Question?
Is this GISS H308 interchangeable with an H308 from another brand like SKF or FAG?

Answer

Yes, the H308 designation is a standardized dimension. An H308 adapter sleeve from GISS is dimensionally interchangeable with an H308 from any other reputable manufacturer like SKF, FAG, or NSK. Critical dimensions such as the 35mm shaft diameter, taper, and thread will be identical.
