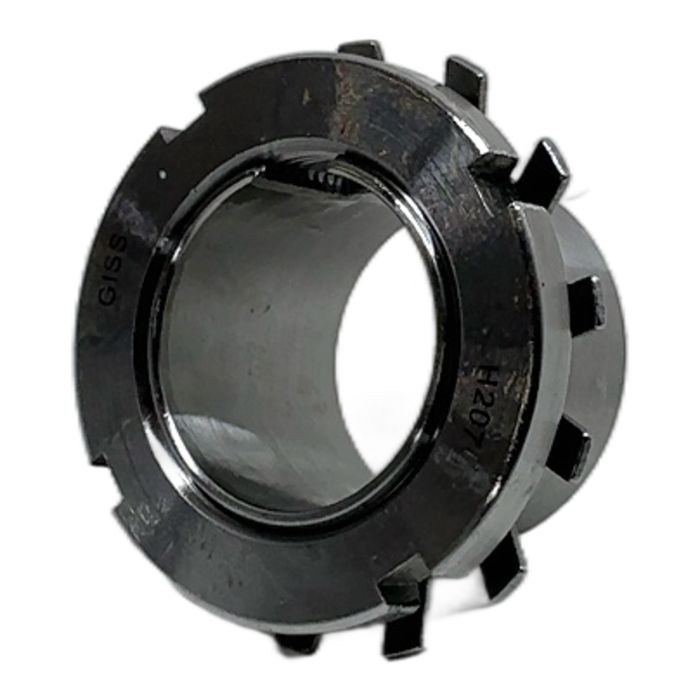

GISS Adapter Sleeve H207 for 30mm Shaft

Description

The GISS H207 is a high-quality adapter sleeve designed for mounting bearings with a tapered bore onto a cylindrical shaft seat. This component ensures a secure and precise fit, facilitating easy installation and dismounting of bearings. It is a complete assembly, typically including the sleeve, a KM7 lock nut, and an MB7 lock washer. Manufactured from durable steel, it offers reliability for various industrial applications.

Specifications

• Manufacturer: GISS
• Part Number: H207 (GISS P/N: 252508)
• Product Type: Adapter Sleeve
• Shaft Diameter: 30 mm
• Thread Size: M35x1.5
• Included Components: Sleeve, Lock Nut (KM7), Lock Washer (MB7)
• Material: Steel

Label Info

• Brand: GISS
• Model: H207
• Reference: C600*H207
• EAN: 3660338127618

Application

Adapter sleeves like the H207 are universally used in mechanical engineering, conveyor systems, agricultural machinery, and industrial gearboxes to mount bearings such as self-aligning ball bearings and spherical roller bearings onto plain or stepped shafts.

CO2 Impact

By purchasing this reused adapter sleeve, you are helping to avoid the production of a new one, saving an estimated 0.3 kg of CO2. This saving is comparable to the energy required to charge a modern smartphone 36 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The H207 is designed for bearings with a tapered bore of 1:12, such as self-aligning ball bearings (1207), spherical roller bearings (2207), and CARB toroidal roller bearings (C 2207). It is crucial to verify the bearing's specific bore size and taper before installation.

The lock nut (typically a KM7) should be tightened to remove the internal clearance of the bearing. This is often done by feel or by using the angle of rotation method specified by the bearing manufacturer. Over-tightening can preload the bearing and cause premature failure, while under-tightening can lead to movement on the shaft. Always secure the nut by bending one of the tabs of the lock washer (MB7) into a slot on the nut.

Yes, the H207 is an ISO standard part, meaning its critical dimensions (shaft diameter, taper, thread size) are standardized. A GISS H207 can be used as a direct replacement for an SKF H207, FAG H207, or any other brand's H207 sleeve, provided they all adhere to the ISO 2982-1 standard.
