GISS 0-10 bar ABS Pressure Gauge, 50mm Diameter

Description

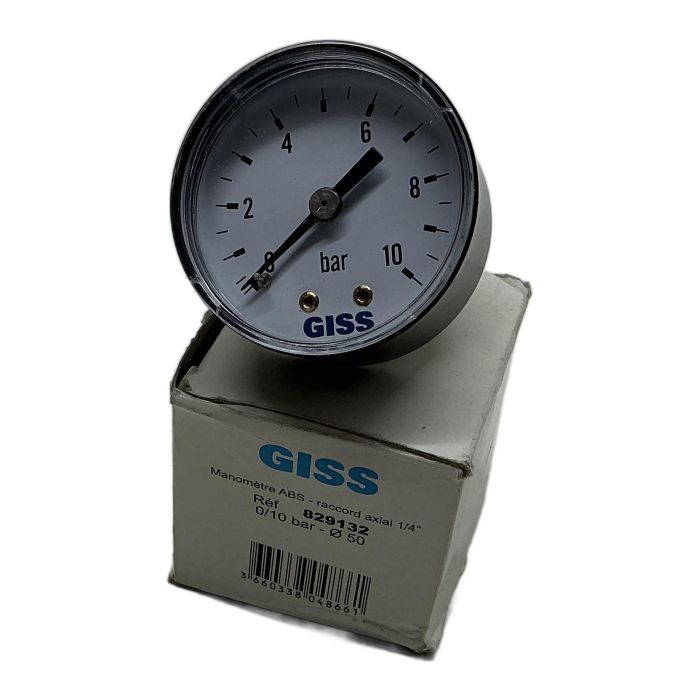

This is the GISS model 829132, a reliable and cost-effective dry pressure gauge designed for monitoring pressure in compressed air systems and other gaseous media applications. It features a clear, easy-to-read 50mm dial with a 0 to 10 bar scale. The durable black ABS housing provides protection in industrial environments, and the standard 1/4 inch axial brass connection ensures straightforward installation. This gauge is an essential component for system diagnostics, regulation, and safety.

Specifications

• Manufacturer: GISS
• Part Number: 829132
• Pressure Range: 0 - 10 bar
• Dial Diameter: 50 mm
• Connection Type: Axial (Back Mount)
• Connection Thread: G 1/4 inch Male
• Housing Material: ABS Plastic
• Window Material: Plastic

Application

Perfect for installation on filter-regulator-lubricator (FRL) units, air compressors, pneumatic actuators, and general compressed air lines to monitor operating pressure.

Country of Origin

France

CO2 Impact

By purchasing this reused component, you are helping to avoid 2.5 kg of CO2 emissions associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the accuracy class of this GISS 829132 pressure gauge?

GISS specifies this as a standard industrial gauge, typically falling into Class 2.5 according to EN 837-1, which means the maximum error is 2.5% of the full scale value (0.25 bar).

This is a standard Bourdon tube pressure gauge, often referred to as a dry gauge. It is primarily designed for use with neutral gaseous media like compressed air. While it can technically measure liquid pressure, it is not glycerin-filled, so it is not ideal for systems with high vibration or pressure pulsations.

'Raccord axial' means the 1/4 inch threaded connection is on the back of the gauge, in the center, parallel to the dial face. This is for panel mounting or direct installation where the connection comes straight out from the pipe or manifold.
