GEA Tuchenhagen VARIVENT Mixproof Valve REC-OD3"/OD3"

Description

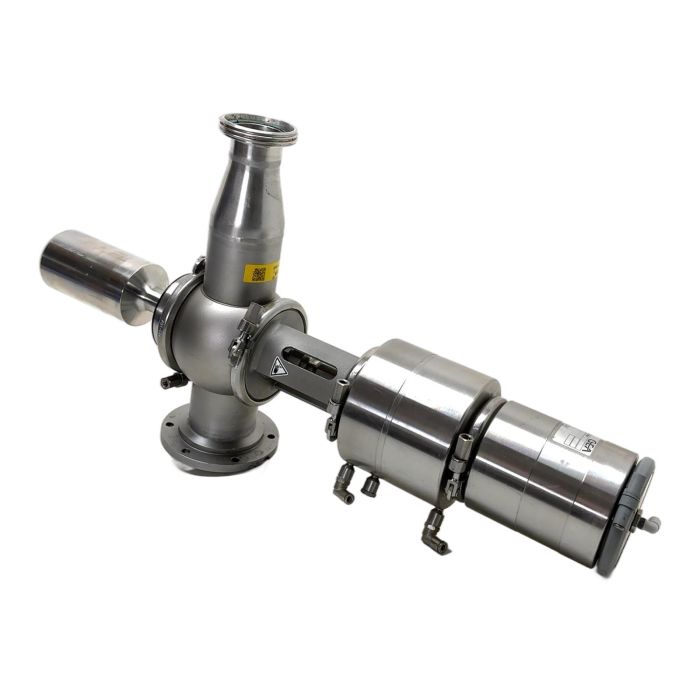

This is a high-performance VARIVENT mixproof valve from GEA Tuchenhagen, model REC-OD3"/OD3". Engineered for the highest standards of hygiene and safety, this valve is designed for processes requiring reliable separation of different media. Its robust construction from 1.4404 (AISI 316L) stainless steel and FDA-compliant HNBR seals makes it an ideal choice for the food, beverage, dairy, and pharmaceutical industries.

Specifications

• Manufacturer: GEA Tuchenhagen
• Product Line: VARIVENT
• Valve Type: REC (Reverse Acting Corner Valve)
• Connection Size: 3 inch OD (Outside Diameter)
• Body Material: 1.4404 (AISI 316L) Stainless Steel
• Seal Material: HNBR (FDA Compliant)
• Actuator Air Pressure: min. 6.0 bar / 87 psi, max. 8.0 bar / 116 psi
• Max Process Pressure (PS): 5.0 bar / 72.5 psi

Label Info

• Type: REC-OD3"/OD3"-SZ-BD5/CLR5-L0-32N/52/05+LAT.070M
• Serial: 1320664/0010
• Body Marking: TU 3" OD 1.4404 B-12737

Application

Perfect for complex fluid handling systems where cross-contamination must be prevented. Common applications include managing CIP (Clean-in-Place) fluids, product routing, and tank connections in hygienic processing plants.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned valve, you are preventing approximately 36 kg of CO2 emissions. This saving is equivalent to the emissions from driving a car for 180 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A mixproof valve allows two different fluids to flow through the same valve body simultaneously without any risk of cross-contamination. It uses two independent valve seats, creating a leakage chamber between them that can be cleaned, ensuring process safety and hygiene.

HNBR (Hydrogenated Nitrile Butadiene Rubber) seals offer excellent resistance to oils, fats, and many chemicals, along with good mechanical strength and high-temperature tolerance. Being FDA compliant, they are suitable for a wide range of applications in the food, beverage, and dairy industries, especially for processing fatty products.

Yes, the actuator on this VARIVENT valve is designed to be compatible with GEA's control and feedback units, such as the T.VIS series. This allows for automated control, position feedback, and integration into a larger process control system (PCS).
