GEA Tuchenhagen VARIVENT Mixproof Valve with T.VIS Control Top

Description

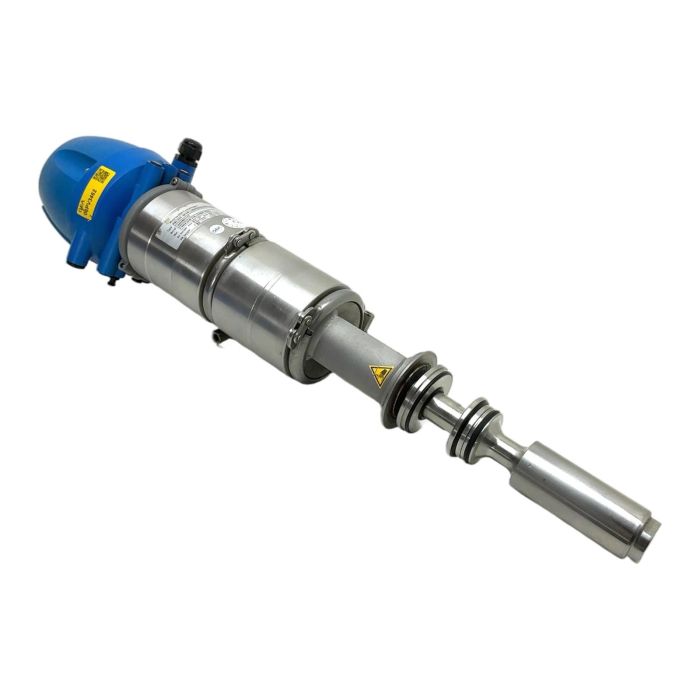

This GEA Tuchenhagen valve, model RBC-OD2"-SZ-TM1.L2BAM-BD/BLR50-V2-32N/52, is a state-of-the-art mixproof valve designed for demanding hygienic processes. Part of the renowned VARIVENT series, it ensures safe and reliable separation of two different media within a single valve body, preventing cross-contamination. It is constructed from high-grade stainless steel and fitted with an intelligent T.VIS M-1 control top for automated operation and feedback.

Specifications

• Manufacturer: GEA Tuchenhagen
• Product Line: VARIVENT
• Control Top: T.VIS M-1 (Type TM1.L2BAM)
• Control Voltage: 24 V DC, 3-Wire PNP
• Materials: 1.4404 (AISI 316L) Stainless Steel, HNBR (FDA compliant) seals
• Actuation Pressure: 6.0 to 8.0 bar / 87 to 116 psi
• Process Pressure (PS): max 5.0 bar / 72.5 psi
• Protection Class: IP66

Label Info

• Type: RBC-OD2"-SZ-TM1.L2BAM-BD/BLR50-V2-32N/52
• Serial Number: 1243296/0170

Application

Ideal for use in the food and beverage, dairy, pharmaceutical, and chemical industries where process safety and product integrity are paramount. Common applications include managing product flow and Cleaning-In-Place (CIP) circuits.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this reconditioned item, you are helping to prevent the emission of approximately 62 kg of CO2. This saving is comparable to driving a standard car for 310 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A mixproof valve allows two different products or a product and a cleaning fluid (CIP) to flow through the same valve body simultaneously without risk of cross-contamination. It uses two independent seals, creating a leakage chamber between them that can be drained and cleaned.

The control top operates on 24 V DC and uses a 3-wire PNP output signal. This is a common standard for industrial sensors and allows for easy integration into modern PLC control systems.

This indicates the valve is constructed for hygienic applications. 1.4404 (AISI 316L) is a high-grade, corrosion-resistant stainless steel. HNBR (Hydrogenated Nitrile Butadiene Rubber) is a durable sealing material, and the (FDA) designation confirms it is compliant with food-grade standards set by the U.S. Food and Drug Administration.
