GEA Tuchenhagen DN80 Pneumatic Butterfly Valve with T.VIS A-15 Control

Description

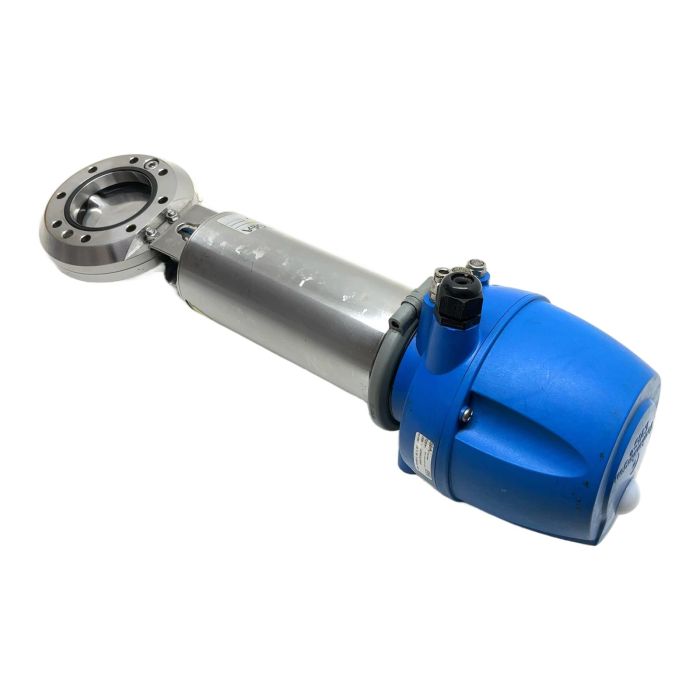

This is a complete pneumatic butterfly valve assembly from GEA Tuchenhagen, designed for hygienic process applications. The unit consists of a DN80 (3-inch) ECOVENT series butterfly valve, a pneumatic actuator, and a T.VIS A-15 control and feedback head. Constructed from high-grade stainless steel (AISI 316L) with an FDA-compliant HNBR seal, it is ideal for industries such as food and beverage, dairy, and pharmaceuticals. The T.VIS A-15 provides reliable 24V DC PNP electronic position feedback and visual status indication.

Specifications

• Manufacturer: GEA Tuchenhagen
• Valve Size: DN80 / 3 inch
• Actuator Type: Pneumatic
• Control Head: T.VIS A-15
• Operating Voltage: 24V DC
• Signal Output: 3-wire PNP
• Materials: Stainless Steel 1.4404 (AISI 316L), HNBR Seal (FDA)
• Pneumatic Operating Pressure: 4.8 to 8.0 bar / 69.6 to 116 psi
• Process Pressure Rating: PN10
• Protection Class: IP66

Label Info

• Control Head Type: 3412-1111-1000-0000
• Assembly Type: 8880-3002-1100-0000/3412-1111-1000-0000
• Serial Number: 1224822/0050

Application

This valve assembly is perfectly suited for automated fluid control systems in sterile and hygienic environments. It can be used for isolating or regulating flow in pipelines for milk, beer, juices, pharmaceutical ingredients, and other sensitive media.

Country of Origin

Made in Germany.

CO2 Impact

Choosing this refurbished GEA Tuchenhagen valve assembly over a new one prevents the emission of approximately 54.0 kg of CO2. This saving is comparable to driving a car for 270 kilometers, contributing to a more sustainable industrial operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The T.VIS A-15 is a control and feedback unit. It provides a clear visual indication of the valve's position (open/closed) via LEDs, sends an electronic PNP signal back to the PLC or control system, and can house solenoid valves to control the air supply to the actuator.

HNBR (Hydrogenated Nitrile Butadiene Rubber) has good resistance to oils, chemicals, and moderate heat, typically up to 150 deg Celsius (302 deg Fahrenheit). However, its suitability depends on the specific process medium and temperature. For steam or higher temperature applications, alternative seals like EPDM or FKM might be required.

This type of pneumatic actuator is typically either single-acting (spring-return) or double-acting and does not include a standard manual override handle. In case of air failure, a spring-return actuator will automatically move to its pre-defined safe position (fail-open or fail-closed). Manual operation would require external tools to manipulate the valve stem.
