GEA Tuchenhagen VARIVENT D-Tec Pneumatic Butterfly Valve Assembly

Description

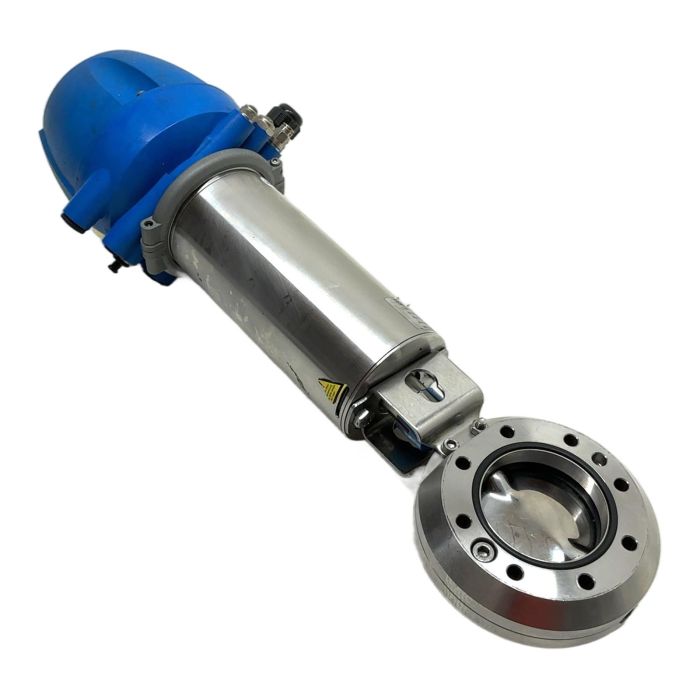

This is a complete, pre-assembled pneumatic butterfly valve unit from GEA Tuchenhagen, a world leader in hygienic process components. The assembly consists of a VARIVENT D-Tec butterfly valve, a powerful pneumatic actuator, and an integrated T.VIS A-15 control top for feedback and control. Constructed from high-grade stainless steel and featuring FDA-compliant seals, this valve is designed for reliable performance in sterile and demanding applications within the food, beverage, dairy, and pharmaceutical industries.

Specifications

• Manufacturer: GEA Tuchenhagen
• Actuator Type: 8880-3002-1100-0000
• Control Top: T.VIS A-15 (Type 3412-1111-1000-0000)
• Control Signal: 24V DC, 3-Wire PNP
• Materials: 1.4404 (AISI 316L) Stainless Steel
• Seal Material: HNBR (FDA compliant)
• Operating Air Pressure: 4.8 to 8.0 bar (69.6 to 116 psi)
• Max. Product Pressure: 10 bar (145 psi)
• Ingress Protection: IP66

Label Info

• Serial Number (SNR): 1224822/0060

Application

Ideal for automated flow control in sanitary process lines. Common applications include isolating or diverting fluids in breweries, dairies, food processing plants, and pharmaceutical manufacturing facilities where hygiene and reliability are paramount.

Country of Origin

Germany

CO2 Impact

By choosing this pre-owned, high-quality component, you are helping to reduce industrial waste and avoid the emission of approximately 52 kg of CO2. This is equivalent to the emissions from driving an average car for 260 kilometers.

Availability

This unit is in excellent condition and ready for immediate deployment in your facility. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

What is the function of the T.VIS A-15 control top?

The T.VIS A-15 is a control and feedback unit. It provides electrical position feedback (open/closed) to the control system (PLC) and houses the solenoid valve that controls the air supply to the pneumatic actuator.

Is the HNBR seal material suitable for high-temperature applications?

HNBR (Hydrogenated Nitrile Butadiene Rubber) offers excellent resistance to heat, oils, and chemicals. It typically has a working temperature range up to about 150 deg C (302 deg F), making it suitable for many hot processing and Clean-In-Place (CIP) applications.

Can this valve be operated manually in case of power or air failure?

This specific pneumatic actuator is a single-acting, spring-return model. In case of air pressure loss, an internal spring automatically returns the valve to its default position (typically closed), providing a fail-safe function. It does not have a manual override handle.
