GEA Tuchenhagen Pneumatic Butterfly Valve with T.VIS A-15 Control Head

Description

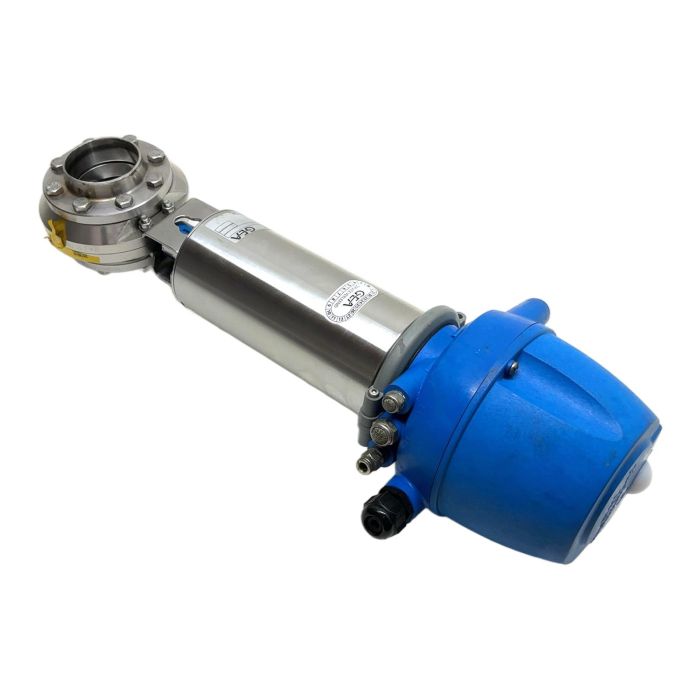

This is a complete, pre-assembled pneumatic butterfly valve unit from GEA Tuchenhagen. It includes a 2.5-inch hygienic butterfly valve, a robust pneumatic actuator, and a T.VIS A-15 control head. This assembly is designed for automated control of fluids in hygienic process systems, commonly found in the food and beverage, dairy, and pharmaceutical industries. The AISI 316L stainless steel construction ensures high corrosion resistance and product purity.

Specifications

• Manufacturer: GEA Tuchenhagen
• Valve Type: Butterfly Valve
• Actuator Type: Pneumatic
• Control Head: T.VIS A-15 (Type 3412-1111-1000-0000)
• Actuator Model: Type 8880-2122-1100-0000
• Size: 2.5 inch
• Pressure Rating: PN10 (10 bar / 145 psi)
• Material (Wetted Parts): 1.4404 / AISI 316L Stainless Steel
• Seal Material: HNBR (FDA compliant)
• Control Head Voltage: 24V DC
• Signal Type: 3-wire PNP
• Required Air Pressure: min. 4.8 bar (69.6 psi), max. 8.0 bar (116 psi)

Label Info

• Serial Number: 1224822/0020
• Plant ID: 02CV701

Application

Ideal for automated shut-off and control applications in hygienic process lines for liquids and gases. Suitable for industries such as breweries, dairies, beverage production, and pharmaceutical manufacturing.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this pre-owned assembly saves an estimated 50.0 kg of CO2 compared to producing a new one. This is comparable to the emissions of a 250 km car journey.

Availability

This unit is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The T.VIS A-15 is a control and feedback unit. It receives signals to open or close the valve via integrated solenoid valves and provides electrical feedback (24V DC PNP) to the control system (e.g., a PLC) to confirm the valve's open or closed position.

HNBR (Hydrogenated Nitrile Butadiene Rubber) seals offer excellent resistance to oils, fats, and many chemicals, with a typical temperature range of -25 deg C to +150 deg C. Always verify chemical compatibility with your specific process media before installation.

The label specifies a minimum operating air pressure of 4.8 bar (69.6 psi) and a maximum of 8.0 bar (116 psi). Operating within this range is crucial for reliable performance.
