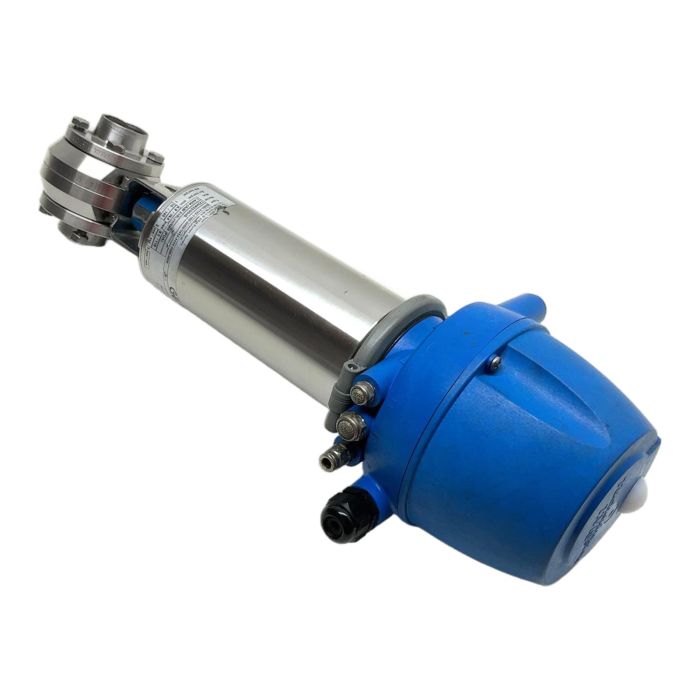

GEA Tuchenhagen Pneumatic Butterfly Valve with T.VIS A-15 Control Top

Description

This is a complete butterfly valve assembly from GEA Tuchenhagen, a leader in hygienic process technology. The unit combines a robust 1.5-inch butterfly valve with a pneumatic actuator and a T.VIS A-15 control top. It is engineered for reliable flow control in sanitary environments such as food processing, dairies, breweries, and pharmaceutical production. The high-quality AISI 316L stainless steel construction ensures compatibility with stringent hygiene standards and CIP/SIP processes.

Specifications

• Manufacturer: GEA Tuchenhagen
• Type Number: 8880-2122-1100-0000 / 3412-1111-1000-0000
• Product Type: Pneumatically Actuated Butterfly Valve
• Control Top Model: T.VIS A-15
• Connection Size: 1.5 inch OD (Tri-Clamp compatible)
• Material (wetted parts): 1.4404 / AISI 316L
• Control Voltage: 24V DC, 3-wire PNP
• Operating Air Pressure: 4.8 bar (min) to 8.0 bar (max)
• Max Process Pressure (PS): 10 bar / 145 psi
• IP Rating (Control Top): IP66

Label Info

• Serial Number (SNR): 1224822/0040

Application

Ideal for automated shut-off and control applications in hygienic fluid processing lines. Its durable design is perfect for isolating or diverting product flows in industries that demand high levels of cleanliness and reliability.

Country of Origin

Made in Germany.

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and avoiding approximately 27.0 kg of CO2 emissions associated with the production of a new unit. This saving is equivalent to the emissions of a car driving 135 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The T.VIS A-15 control top uses a direct 24V DC 3-wire PNP signaling interface for position feedback. It does not use a digital fieldbus protocol like AS-i or DeviceNet.

Yes, absolutely. The valve's wetted parts are made from 1.4404 (AISI 316L) stainless steel with FDA-compliant seals, making it perfectly suitable for standard CIP and SIP (Sterilization-In-Place) procedures in the food and pharmaceutical industries.

The valve features 1.5 inch OD (Outside Diameter) connections, which are designed to be used with standard Tri-Clamp or Tri-Clover style sanitary fittings.
