Gates Hi-Power A57 Classical V-Belt

Description

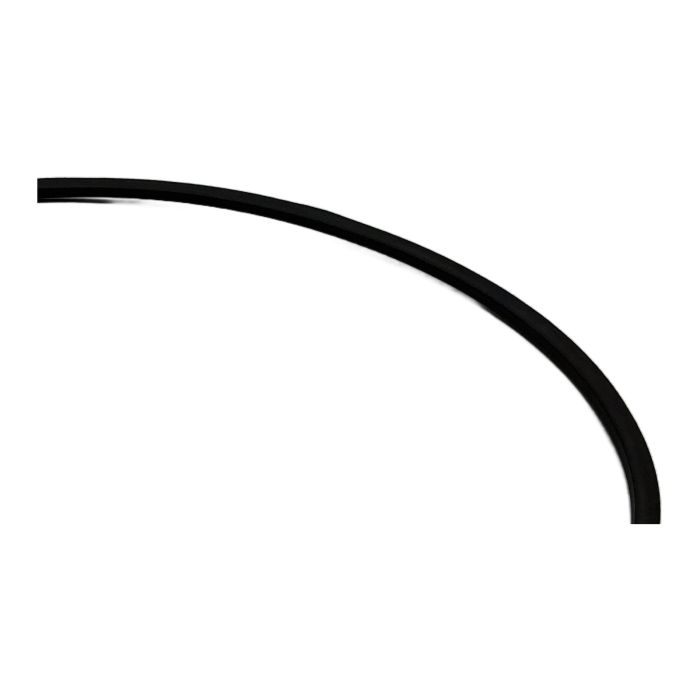

This is a Gates Hi-Power V-belt, model A57, a standard for industrial power transmission. Engineered for performance and durability, its classical profile is suitable for a wide variety of machinery. The belt is built to be oil and heat resistant, and it is static conductive according to ISO 1813 standards, making it safe for use in sensitive environments. Its UNISET construction means it is manufactured to tight tolerances, allowing for use in multi-belt drives without requiring matched sets.

Specifications

• Manufacturer: Gates
• Series: Hi-Power
• Profile: A
• Designation: A57
• Top Width: 13 mm
• Internal Length (Li): 1450 mm
• Datum Length (Ld): 1485 mm
• Material: Rubber composite with polyester tensile cords
• Compliance: ATEX & RoHS

Label Info

• Type: V-BELT A57-1485
• Markings: A57 13x1450Li 1485LD, Static Conductive, Oil & Heat resistant

Application

Ideal for use in industrial machinery such as pumps, fans, compressors, and conveyors where reliable power transmission is critical.

Country of Origin

Made in EU.

CO2 Impact

By purchasing this refurbished component, you contribute to a circular economy and help avoid 1.0 kg of CO2 emissions associated with the production of a new part. Order now from PLC2Day for expert support and fast delivery.

Availability

This item is in stock and ready for immediate dispatch.

FAQ

What is the difference between Li (internal length) and Ld (pitch length)?

Li (1450 mm for this belt) is the measurement of the inner circumference. Ld (1485 mm), also known as pitch or effective length, is the length at the neutral axis of the belt where the reinforcing cords are located. Ld is the dimension used for calculating drive geometry and center distances.

Yes, this belt is marked as ATEX compliant. This means it has been designed and tested to be static conductive (ISO 1813), preventing the build-up of static electricity that could ignite a spark in potentially explosive atmospheres. Always verify the specific ATEX zone requirements for your application.

The UNISET marking indicates that these belts are manufactured to extremely tight tolerances. This allows you to install multiple belts on a single drive without the need for individual matching. All UNISET belts of the same size are considered a matched set, ensuring uniform load distribution and extending the service life of the drive system.
