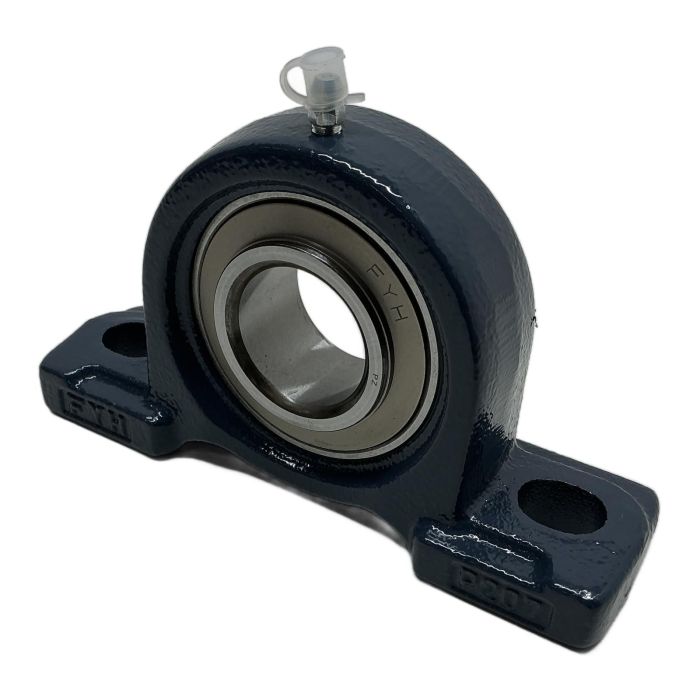

FYH UKP207J Pillow Block Bearing Unit

Description

The FYH UKP207J is a high-quality pillow block bearing unit designed for reliable operation in a wide range of industrial applications. It features a solid cast iron housing for durability and an insert bearing that uses an adapter sleeve locking mechanism to securely fasten to a 30mm shaft. This type of mounting provides a strong, concentric grip, making it suitable for applications with higher speeds or vibrations.

Specifications

• Manufacturer: FYH
• Type: Pillow Block Bearing Unit
• Model: UKP207J
• Bore Diameter: 30 mm
• Housing Material: Cast Iron
• Insert Bearing: UK207
• Housing Series: P207
• Locking Mechanism: Adapter Sleeve
• Lubrication: Grease Nipple for Relubrication

Label Info

• Brand: FYH
• Model: UKP207J
• Part Number: 91001549-002-116961

Application

This bearing unit is ideal for use in conveyor systems, agricultural equipment, food processing machinery, and general manufacturing environments where a reliable shaft support is required.

Country of Origin

Made in Japan.

CO2 Impact

Choosing this reused component saves approximately 2.8 kg of CO2 emissions compared to a newly manufactured part, contributing to a more sustainable operation.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the main advantage of an adapter sleeve lock (like in the UKP series) compared to a set screw lock (UCP series)?

An adapter sleeve provides a 360-degree concentric grip on the shaft, which reduces fretting corrosion and allows for higher running speeds and better dynamic balance compared to the point-contact of set screws. It also works well on commercial-grade, slightly undersized shafts.

Yes, the UK207 insert is a standard component and can be replaced. It is designed to fit various FYH housing types, including four-bolt flange (UKF), two-bolt flange (UKFL), and take-up units (UKT), providing flexibility in application design.

FYH units typically come pre-lubricated with a high-quality lithium-based grease. For standard operating conditions (moderate speed, clean environment, temperature below 100 deg C), relubrication every 6-12 months is often sufficient. However, for harsh conditions, more frequent intervals are necessary. Always consult the manufacturer's guidelines for your specific application.
