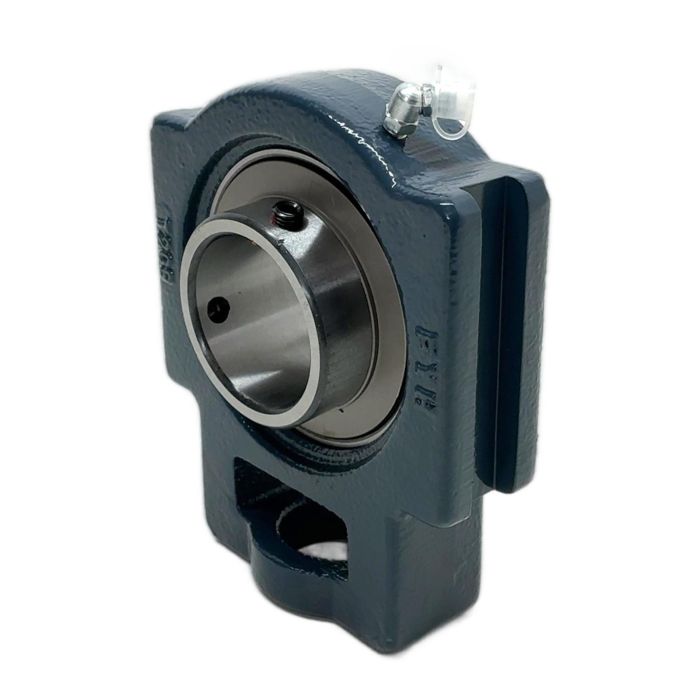

FYH UCT209J Take-up Bearing Unit

Description

The FYH UCT209J is a high-quality take-up bearing unit with a 45 mm bore. These units are designed for applications requiring adjustable shaft positioning and belt tensioning, such as conveyor systems. The robust cast iron housing (T209) combined with the reliable UC209 insert bearing ensures long service life and dependable performance in industrial environments. Locking to the shaft is achieved via two set screws, providing a secure and simple installation.

Specifications

• Manufacturer: FYH
• Model: UCT209J
• Product Type: Take-up Bearing Unit
• Bore Diameter: 45 mm
• Housing Material: Cast Iron
• Locking Mechanism: Set Screw Type
• Insert Bearing: UC209
• Housing Series: T209

Label Info

• Model: UCT209J
• Brand: FYH

Application

Take-up units like the UCT209J are commonly used in conveyor belt systems, agricultural machinery, and other equipment where shaft adjustment and tension control are critical for operation.

Country of Origin

This product is manufactured by FYH in Japan.

CO2 Impact

By purchasing this pre-owned bearing unit, you are contributing to a circular economy and helping to avoid 4.6 kg of CO2 emissions associated with the production of a new one. This is equivalent to the emissions from driving a car for 23 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The primary advantage is its ability to be mounted in a take-up frame, allowing for linear adjustment of the shaft's position. This is essential for setting and maintaining proper tension in belts and chains, which prolongs the life of the entire drive system.

For optimal holding power, tighten the set screws alternately until they are seated. Then, torque them to the manufacturer's recommended value. This ensures the shaft is securely gripped without causing distortion to the inner ring.

Yes, the UCT209J is equipped with a grease nipple for re-lubrication. It is recommended to use a high-quality lithium-based grease suitable for rolling bearings. Consult the FYH technical documentation for specific grease types and re-lubrication intervals based on operating conditions.
