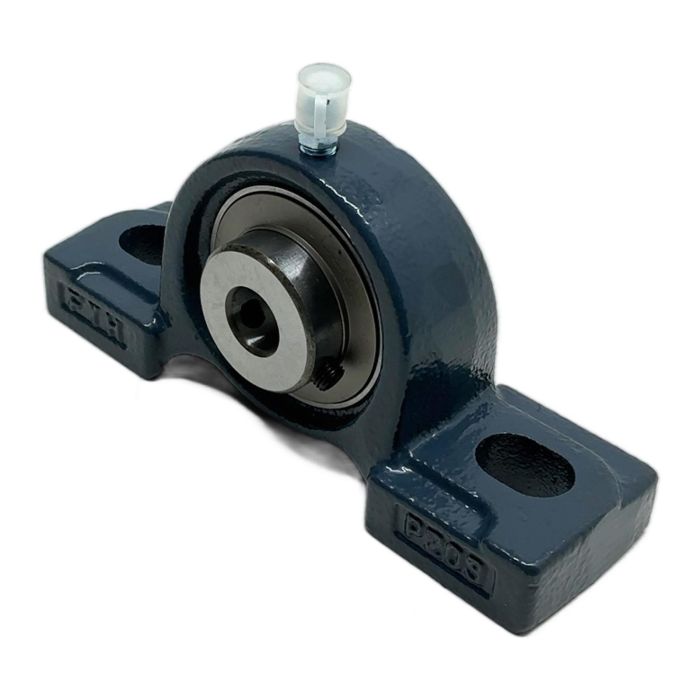

FYH UCP201J Pillow Block Bearing Unit

Description

The FYH UCP201J is a standard-duty pillow block mounted bearing unit, suitable for a wide range of industrial applications. It consists of a UC201 bearing insert and a P201 cast iron housing. This unit provides a simple and effective solution for supporting rotating shafts. The set-screw locking mechanism ensures a secure fit on the shaft.

Specifications

• Manufacturer: FYH
• Model: UCP201J
• Shaft Diameter (d): 12 mm
• Housing Material: Cast Iron
• Bearing Insert: UC201
• Locking Type: Set Screw Locking
• Lubrication: Grease Nipple Included

Label Info

Please note: While the product packaging correctly identifies this unit as UCP201J (for a 12mm shaft), the casting on the housing itself may be marked 'P203'. This is a known manufacturing variation and does not affect the unit's specified dimensions or performance.

Application

This pillow block bearing is commonly used in conveyor systems, agricultural machinery, food processing equipment, and general manufacturing machinery where a reliable shaft support is needed.

Country of Origin

Made in Japan.

CO2 Impact

By purchasing this reused item, you contribute to a circular economy and help avoid 0.8 kg of CO2 emissions associated with new production.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the correct lubrication procedure for the UCP201J bearing?

The UCP201J comes pre-lubricated but can be re-greased via the grease nipple. Use a high-quality lithium-based grease. The re-lubrication interval depends heavily on operating conditions such as speed, load, and environment.

Yes, this is the correct part as specified by the box label. In some production runs, FYH may use housings with generic casting marks that serve multiple bearing sizes. The critical dimensions, especially the 12mm bore of the insert bearing, are correct for a UCP201J unit.

Yes, pillow block units like the UCP201J are primarily designed for radial loads. However, they can accommodate light to moderate axial loads in both directions, making them versatile for many applications.
