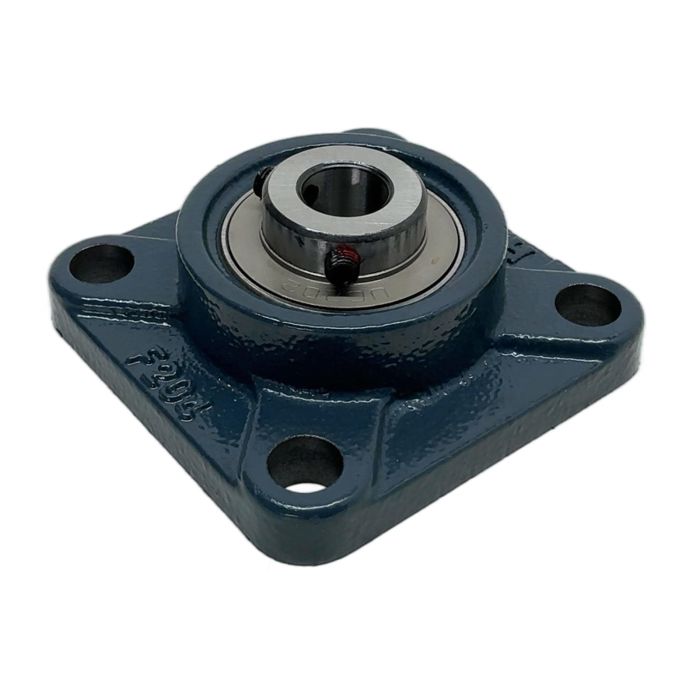

FYH UCF202J 4-Bolt Flange Bearing Unit

Description

The FYH UCF202J is a high-quality 4-bolt square flange bearing unit designed for reliable operation in various industrial settings. It features a solid cast iron housing and a chrome steel bearing insert, providing excellent strength and durability. The unit is designed for a 15mm shaft and uses a set screw locking mechanism for secure and straightforward installation. This bearing unit is pre-lubricated and includes a grease fitting for easy maintenance.

Specifications

• Manufacturer: FYH
• Part Number: UCF202J
• Shaft Diameter: 15 mm
• Housing Type: 4-Bolt Square Flange
• Housing Material: Cast Iron
• Bearing Insert: UC202
• Locking Method: Set Screw

Label Info

• Brand: FYH
• Model: UCF202J
• Bearing Insert on part: UC202
• Housing on part: F204

Application

This bearing unit is ideal for use in conveyor systems, agricultural machinery, food processing equipment, and general industrial machinery where a flange-mounted bearing is required.

Country of Origin

Manufactured in Japan.

CO2 Impact

By purchasing this pre-owned item, you are helping to avoid the 0.9 kg of CO2 emissions associated with the production of a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The unit is sold as a UCF202J, which corresponds to the UC202 bearing insert (15mm bore) and the box label. While the housing is marked F204 (typically for a 20mm bore), the critical component, the bearing insert, matches the UCF202J specification for a 15mm shaft. This appears to be a factory assembly variation, but the functional bore size is 15mm as per the UCF202J model number.

Yes, FYH bearing units like the UCF202J come pre-lubricated with a high-quality lithium-based grease and are ready for installation. The housing is equipped with a grease nipple (zerk fitting) allowing for periodic relubrication to extend service life in demanding environments.

Yes, the UCF202J is manufactured to international dimensional standards, making it directly interchangeable with most other manufacturers' 202-series 4-bolt flange units, such as SKF's FYJ 15 TF or NTN's UCF202D1. Always verify the shaft diameter (15mm) and mounting bolt pattern before installation.
