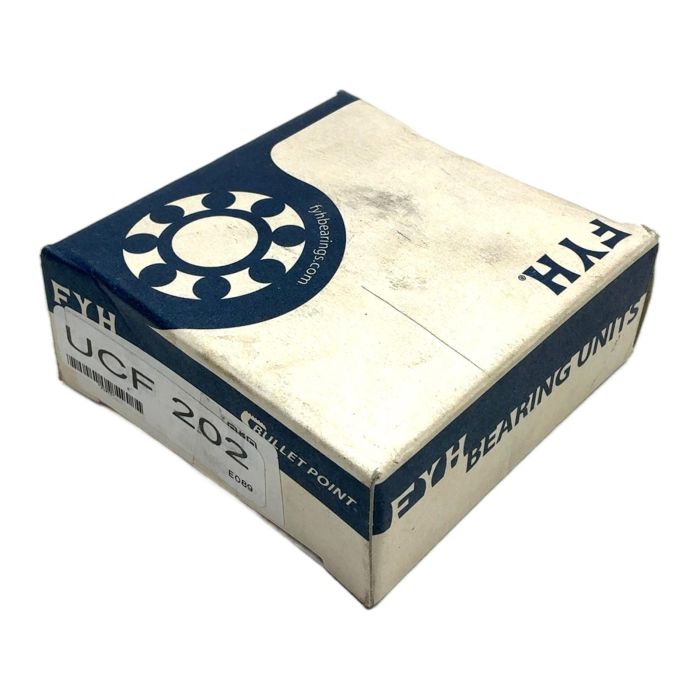

FYH UCF 202 4-Bolt Flange Bearing Unit

Description

The FYH UCF 202 is a high-quality, four-bolt flange bearing unit designed for applications requiring stable and reliable shaft support. It consists of a durable cast iron housing and a pre-lubricated deep groove ball bearing insert. The set screw locking mechanism ensures a secure fit on the shaft. This bearing unit is ideal for use in conveyor systems, agricultural machinery, and various industrial equipment.

Specifications

• Manufacturer: FYH
• Part Number: UCF 202
• Type: 4-Bolt Flange Bearing Unit
• Bore Diameter: 15 mm
• Housing Model: F204
• Bearing Insert: UC202
• Housing Material: Cast Iron
• Locking Method: Set Screw

Application

This bearing unit is widely used in material handling equipment, food processing machinery, construction equipment, and textile machinery where a simple and effective bearing arrangement is required.

Country of Origin

This product is manufactured by FYH in Japan.

CO2 Impact

Choosing this reused FYH UCF 202 bearing unit saves approximately 0.9 kg of CO2 compared to manufacturing a new one. This saving is equivalent to the emissions from driving a car for 4.5 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

For a 15mm bore bearing like the UC202, the recommended set screw tightening torque is typically around 3.9 N-m. However, always consult the official FYH technical documentation for the most accurate and up-to-date specifications for your application.

The UCF 202 is designed for low to moderate speed applications. The limiting speed is influenced by factors like load, lubrication, and ambient temperature. For specific high-speed requirements, it is best to consult FYH's engineering guidelines to ensure the product meets your performance criteria.

Yes, the F204 housing is equipped with a grease fitting (zerk) that allows for re-lubrication. It is recommended to use a high-quality lithium-based grease. The frequency of re-lubrication depends on the operating conditions, such as speed, load, and exposure to contaminants.
