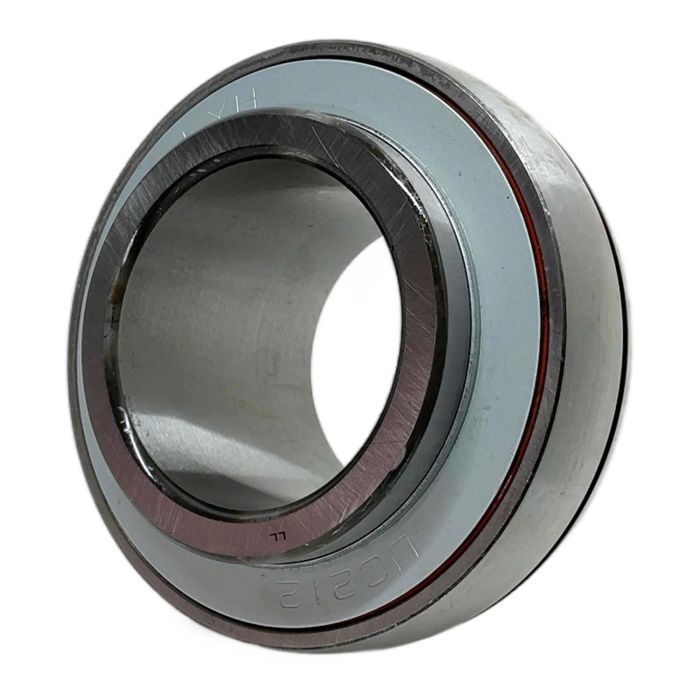

FYH UC212 D1K2 Bearing Insert

Description

The FYH UC212 D1K2 is a high-performance, set-screw type bearing insert designed for reliable operation in a wide range of industrial applications. It features a spherical outer ring that allows it to compensate for initial shaft misalignment when mounted in an appropriate housing. Manufactured from high-carbon chromium bearing steel, this insert provides excellent durability and load-carrying capacity.

Specifications

• Bore Diameter (d): 60 mm
• Outer Diameter (D): 110 mm
• Inner Ring Width (Bi): 65.1 mm
• Outer Ring Width (C): 25 mm
• Locking Mechanism: Set Screw Locking
• Seals: Double-sealed for protection against contaminants
• Material: High-Carbon Chromium Bearing Steel

Label Info

• Brand: FYH
• Model: UC212
• Suffix: D1K2

Application

This bearing insert is suitable for use in various types of machinery, including conveyor systems, agricultural equipment, construction machinery, and packaging systems where robust and reliable performance is required.

Country of Origin

Made in Japan.

CO2 Impact

Opting for this component helps avoid the carbon emissions of new production, saving an estimated 3.3 kg of CO2. This promotes a more sustainable industrial supply chain.

Availability

This item is new and comes in its original manufacturer's packaging. It is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?
What is the correct tightening torque for the set screws on a UC212 bearing?

Answer: For an M10x1.25 set screw typically found on a UC212, the recommended tightening torque is approximately 29 N-m. Always consult the manufacturer's technical documentation for the most accurate value.

Question?
Is the UC212 D1K2 pre-lubricated and ready for installation?

Answer: Yes, FYH UC-series bearings are supplied pre-lubricated with a high-quality lithium-based grease and are ready for immediate installation.

Question?
Can this bearing insert be used in a high-temperature application?

Answer: Standard UC212 bearings with standard seals and grease are typically rated for temperatures up to 120 deg. C (250 deg. F). For higher temperatures, special seals, grease, and internal clearances are required.
