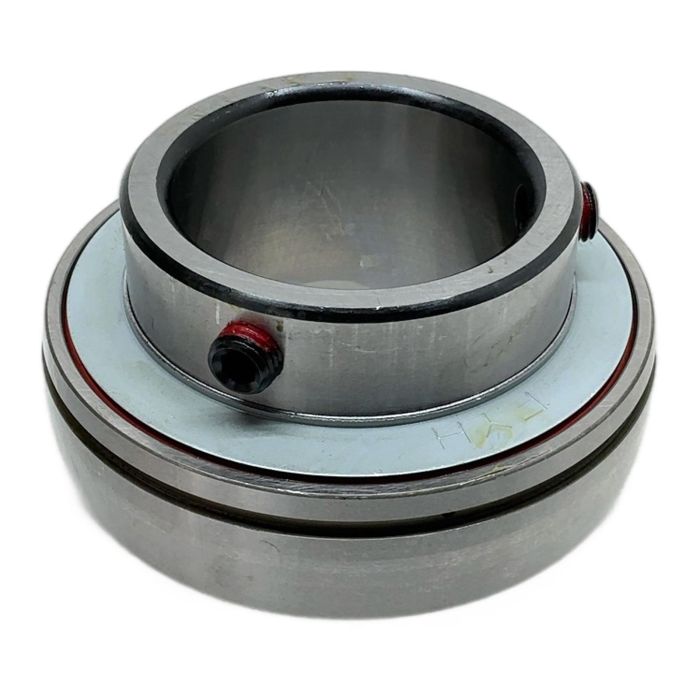

FYH UC211 Insert Bearing

Description

The FYH UC211 is a high-performance insert bearing designed for mounting in bearing housings. Featuring a 55mm bore diameter, it uses a set screw locking mechanism to securely fasten to the shaft. Its spherical outer surface allows it to compensate for initial angular misalignment, making it a versatile choice for a wide range of industrial applications, including conveyors, agricultural machinery, and processing equipment.

Specifications

• Manufacturer: FYH
• Type: Insert Bearing (Y-Bearing)
• Model: UC211
• Bore Diameter: 55 mm
• Outer Diameter: 100 mm
• Inner Ring Width: 55.6 mm
• Locking Method: Set Screw Locking

Label Info

• Model: UC211
• Additional Code: D1K2
• Part Number: 91001524-002-114409

Application

This bearing is ideal for use in pillow block housings, flange units, and take-up units. It is commonly found in material handling systems, food and beverage processing lines, and general industrial machinery where reliable shaft support is critical.

Country of Origin

Made in Japan.

CO2 Impact

By choosing this pre-owned component, you contribute to a circular economy and help avoid approximately 2.2 kg of CO2 emissions compared to manufacturing a new one.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

A UC-type insert bearing is primarily designed to be fitted into various types of bearing housings, such as pillow blocks or flanged units, to provide support for a rotating shaft. Its spherical outer ring allows it to accommodate initial misalignment.

Yes, UC series bearings from FYH are factory pre-lubricated with a high-quality, lithium-based grease, making them ready for immediate installation and use in most standard applications.

For general industrial applications with the set screw locking system, a shaft tolerance of h6 or h7 is typically recommended to ensure a secure fit and optimal performance.
