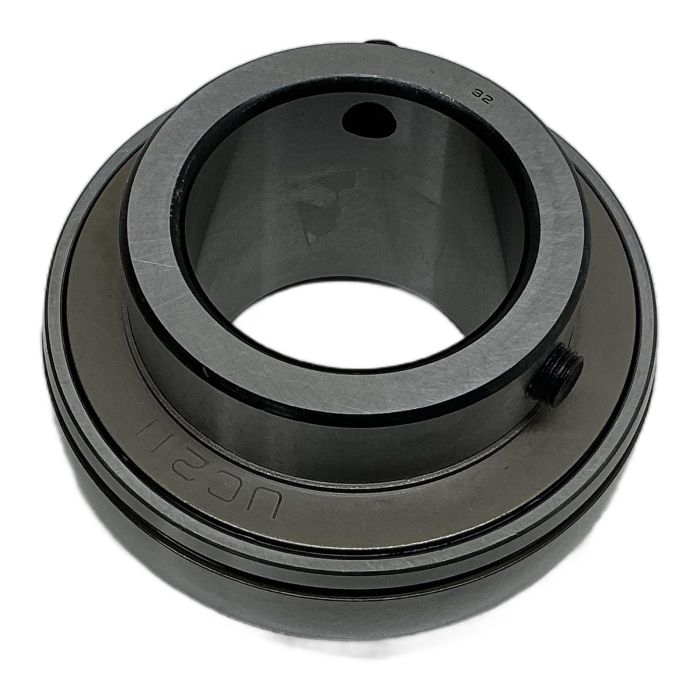

FYH UC211-32 Bearing Insert

Description

The FYH UC211-32 is a robust and reliable ball bearing insert designed for easy mounting and dependable operation. It features a 2-inch bore with a set screw locking mechanism to securely fasten it to the shaft. The spherical outer diameter allows it to accommodate initial static misalignment when used with an appropriate housing. This bearing is suitable for a wide range of industrial and agricultural applications.

Specifications

• Bore Diameter (d): 2 inch / 50.8 mm
• Outer Diameter (D): 100 mm
• Inner Ring Width (B): 55.6 mm
• Outer Ring Width (C): 25 mm
• Locking Mechanism: Set Screw
• Dynamic Load Rating (Cr): 43.5 kN
• Static Load Rating (Cor): 29.1 kN
• Material: Bearing Steel

Label Info

• Manufacturer: FYH
• Type Number: UC211-32

Application

This bearing insert is commonly used in conveyor systems, agricultural machinery, construction equipment, food processing machinery, and general industrial applications where a mounted bearing unit is required.

Country of Origin

Japan

CO2 Impact

By purchasing this pre-owned item, you are contributing to a circular economy and helping to avoid approximately 2.6 kg of CO2 emissions associated with the production of a new unit.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

For the M10x1 set screws typically used in the UC211-32, the recommended tightening torque is approximately 29 N-m (Newton-meters) or 257 in-lbs (inch-pounds).

Yes, FYH UC series bearings come pre-lubricated with a high-quality grease. They are also equipped with a grease fitting, allowing for periodic relubrication to extend service life.

This insert is designed for use with various FYH housing types, including pillow blocks (e.g., UCP211), two-bolt flange units (e.g., UCFL211), and four-bolt flange units (e.g., UCF211).
