Fuji Electric FVR-E7S Series Frequency Inverter

Description

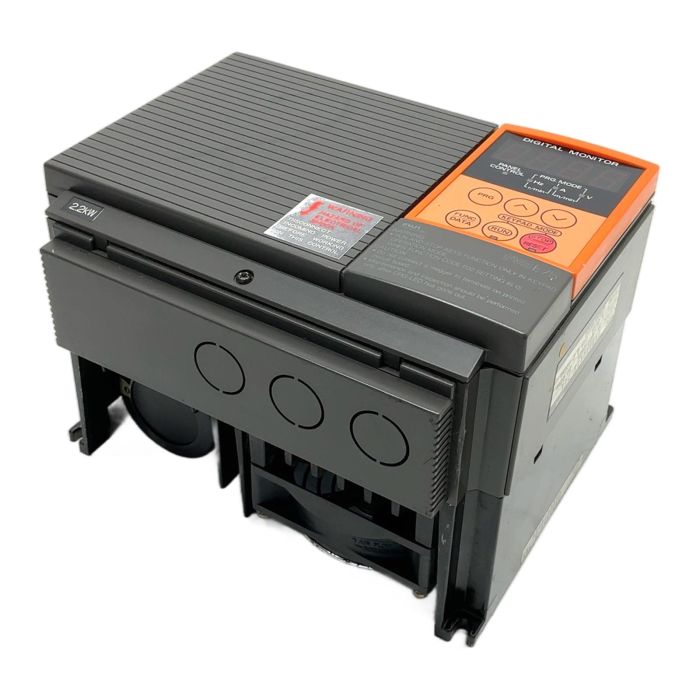

The Fuji Electric FVR022E7S-7EX is a versatile and reliable frequency inverter from the FRENIC-5000 E7S series. Engineered for controlling 3-phase AC motors up to 2.2 kW, it operates from a single-phase 200-240V power source. This drive is known for its compact design, robust performance, and user-friendly interface, making it an excellent choice for replacement in existing systems or for straightforward motor control applications.

Specifications

• Manufacturer: Fuji Electric
• Series: FRENIC-5000 E7S
• Model: FVR022E7S-7EX
• Input Voltage: 1-Phase 200-240V, 50/60Hz
• Output Voltage: 3-Phase 200-240V
• Rated Power: 2.2 kW
• Rated Output Current: 11 A
• Output Frequency Range: 0.2 to 400 Hz
• Control Interface: Integrated digital keypad and monitor

Label Info

• TYPE: FVR022E7S-7EX
• SOURCE: 1O 200-240V 50/60Hz
• OUTPUT: 4.2kVA 11A 0.2-400Hz
• SER.NO: 428567R020

Application

This inverter is suitable for a wide range of general-purpose applications including conveyor belts, fans, pumps, and other machinery requiring variable speed motor control.

Country of Origin

Made in Japan.

CO2 Impact

Opting for this pre-owned unit over a new one prevents the emission of approximately 140 kg of CO2, contributing to a more sustainable industrial environment.

Availability

This is an obsolete item, available as a refurbished spare part. Limited stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this FVR022E7S-7EX a direct replacement for other FRENIC-5000 models?

This model is specific due to its 1-phase 200-240V input for a 2.2kW motor. While it shares programming with other E7S drives, ensure your input voltage and power requirements match exactly. It cannot be used for 3-phase input applications.

It is recommended to first power up the drive without a motor connected to check for any display faults. Then, connect a suitable 3-phase AC motor with a power rating of 2.2kW or less and perform a low-speed test run using the keypad control to verify basic functionality.

No, this drive series uses a proprietary communication protocol and physical connection for its keypad. Modern keypads and software like FRENIC-Loader are not compatible. All programming must be done via the integrated keypad.
