Fuji Electric FRENIC-5000 E7S Series Frequency Inverter

Description

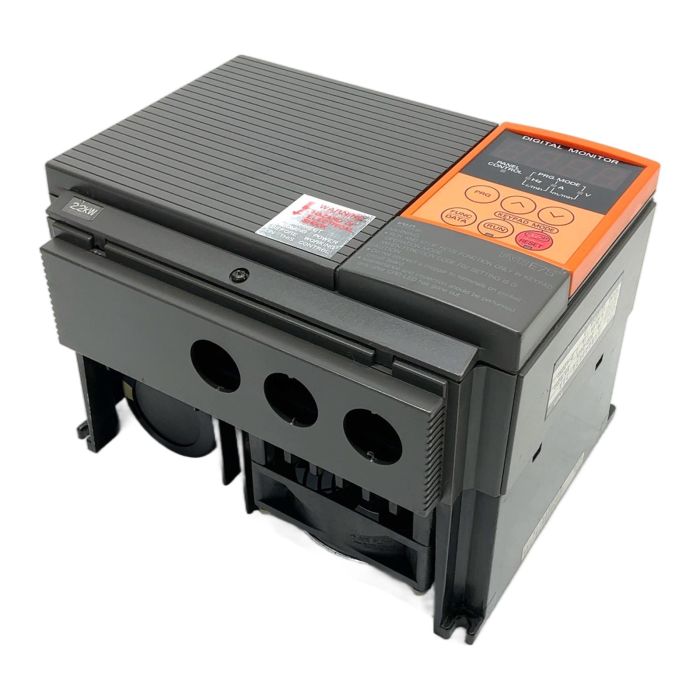

The Fuji Electric FVR022E7S-7EX is a versatile and reliable frequency inverter from the established FRENIC-5000 E7S series. This unit is designed to control the speed of 3-phase AC motors up to 2.2 kW from a single-phase 230V power source. Its compact design and user-friendly interface make it an excellent choice for retrofitting or repairing existing machinery.

Specifications

• Manufacturer: Fuji Electric
• Series: FRENIC-5000 E7S
• Model: FVR022E7S-7EX
• Input Power: 1-phase 200-240V, 50/60Hz
• Output Power: 3-phase 200-240V, 0.2-400Hz
• Rated Output Current: 11 A
• Rated Capacity: 4.2 kVA
• Applicable Motor Size: 2.2 kW (3 HP)

Label Info

• TYPE: FVR022E7S-7EX
• SOURCE: 1ph 200-240V 50/60Hz
• OUTPUT: 4.2kVA 11A 0.2-400Hz
• SER.NO: 521224R116

Application

This drive is suitable for a wide range of general-purpose applications, including conveyor belts, pumps, fans, and various other industrial machines requiring precise speed control.

Country of Origin

Made in Japan.

CO2 Impact

Choosing this reconditioned inverter over a new one prevents the emission of approximately 140 kg of CO2, contributing to a more sustainable industrial practice. This saving is comparable to the emissions from a 700 km car journey.

Availability

This is an obsolete item, crucial for maintaining legacy systems without the need for expensive overhauls. Stock is limited. Order now from PLC2Day for expert support and fast delivery.

FAQ

Can this 1-phase input drive run a standard 3-phase 400V motor?

No. This drive takes a single-phase 200-240V input and produces a three-phase 200-240V output. It can only run 3-phase motors designed for a 230V delta (D) or 400V star (Y) connection, but the motor must be wired in the 230V delta configuration. It cannot power a standard 400V motor at its rated voltage.

The basic programming concepts are similar, but the parameter structure and keypad navigation of the older FRENIC-5000 E7S series are different from modern series like the FRENIC-ACE. Parameters will need to be cross-referenced from the old E7S manual to a new drive's manual if you are upgrading.

As an obsolete model, the internal components such as the main DC-link electrolytic capacitors and the cooling fan are likely beyond their recommended service life (typically 7-10 years). For critical applications, it is advisable to have these components inspected or replaced to ensure reliability.
