Fuji Electric 2.2kW Variable Frequency Drive

Description

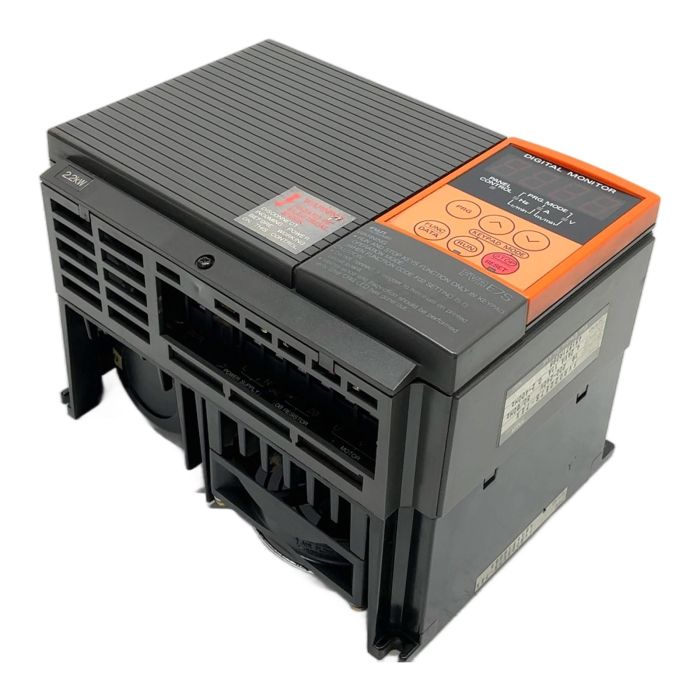

The Fuji Electric FVR022E7S-7EX is a high-performance frequency inverter designed for precise control of 3-phase AC motors up to 2.2 kW. This model operates on a single-phase 200-240V input, making it versatile for applications where 3-phase power is unavailable. Part of the reliable FVR-E7S series, it features a user-friendly digital monitor and keypad for easy setup and operation. Its compact and robust construction ensures durability in demanding industrial environments.

Specifications

• Manufacturer: Fuji Electric
• Type: FVR022E7S-7EX
• Power Rating: 2.2 kW / 3 HP
• Input Voltage: 1-phase 200-240V, 50/60Hz
• Output: 3-phase 200-240V, 11A, 4.2 kVA
• Output Frequency Range: 0.2 Hz to 400 Hz
• Control Method: V/f Control
• Enclosure: IP20

Label Info

• TYPE: FVR022E7S-7EX
• SOURCE: 1-phase 200-240V 50/60Hz
• OUTPUT: 4.2kVA 11A 0.2-400Hz
• SER.NO.: 451571R086

Application

This frequency inverter is ideal for a wide range of applications, including conveyor belts, fans, pumps, mixers, and other general-purpose machinery requiring variable speed control.

Country of Origin

Made in Japan.

CO2 Impact

By purchasing this reused component, you are actively contributing to the circular economy and helping to reduce industrial waste. You have saved approximately 120 kg of CO2, which is comparable to the emissions of driving a car for 600 kilometers.

Availability

This is an obsolete item but available from our stock. Ideal for spare parts or replacing a defective unit to avoid costly system retrofits. Order now from PLC2Day for expert support and fast delivery.

FAQ

Is this drive suitable for a 3-phase 230V motor?

Yes, this drive is specifically designed for that purpose. It takes a single-phase 200-240V input and converts it to a variable frequency, three-phase 200-240V output, perfect for controlling standard 3-phase induction motors.

This model includes a built-in dynamic braking transistor. To utilize it for applications with high inertia or rapid deceleration, you will need to connect an external braking resistor to the 'DB' and '+' terminals. The resistor value should be selected based on the application's duty cycle and braking torque requirements.

While the built-in keypad is the primary method for programming, the FVR-E7S series also supports communication via an RS-485 port. This allows for parameter setting, monitoring, and control using Fuji Electric's loader software or integration into a larger control system.
