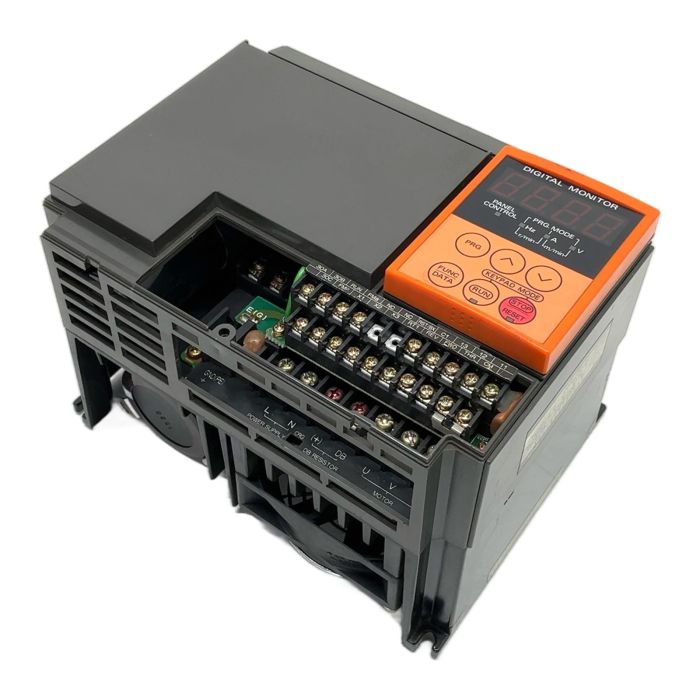

Fuji Electric FVR022E7S-7EX Frequency Inverter

Description

The FVR022E7S-7EX is a general-purpose frequency inverter from Fuji Electric's FRENIC-5000 E7S series. It is engineered to control the speed of a 3-phase AC motor with a power rating up to 2.2 kW. This unit operates on a single-phase 200-240V input, making it suitable for a variety of industrial applications where three-phase power is not available at the source. The drive features a user-friendly digital keypad for easy setup and monitoring of operational parameters.

Specifications

• Manufacturer: Fuji Electric
• Series: FRENIC-5000 E7S
• Model: FVR022E7S-7EX
• Input Voltage: 1-Phase 200-240V AC, 50/60Hz
• Output Voltage: 3-Phase 200-240V AC
• Max. Applicable Motor: 2.2 kW
• Rated Output Current: 11 A
• Rated Capacity: 4.2 kVA
• Output Frequency Range: 0.2 to 400 Hz

Label Info

• TYPE: FVR022E7S-7EX
• SOURCE: 1O 200-240V 50/60Hz
• OUTPUT: 4.2KVA 11A 0.2-400Hz
• SER.NO: 521227R037

Application

This inverter is ideal for controlling pumps, fans, conveyors, and other machinery requiring variable speed control to optimize processes and save energy.

Country of Origin

Made in Japan.

CO2 Impact

By purchasing this pre-owned inverter, you are contributing to a circular economy and avoiding approximately 140 kg of CO2 emissions associated with the production of a new unit.

Availability

This is an obsolete item but available from our stock. Ensure the longevity of your existing systems with this reliable spare part. Order now from PLC2Day for expert support and fast delivery.

FAQ

Modern inverters like the FRENIC-Ace offer more advanced features such as improved V/f and sensorless vector control algorithms for better motor performance, higher efficiency, a more compact size, and built-in communication options like Modbus RTU, which are not standard on the older E7S series.

No. The label clearly specifies a single-phase (1O) input of 200-240V. Connecting a 3-phase supply will damage the unit's input rectifier circuit.

For a basic 2-wire start/stop setup, you would typically connect a switch between the FWD (Forward) terminal and the CM (Common) terminal. Closing the switch starts the motor in the forward direction, and opening it stops the motor, assuming the parameters are set for external control.
