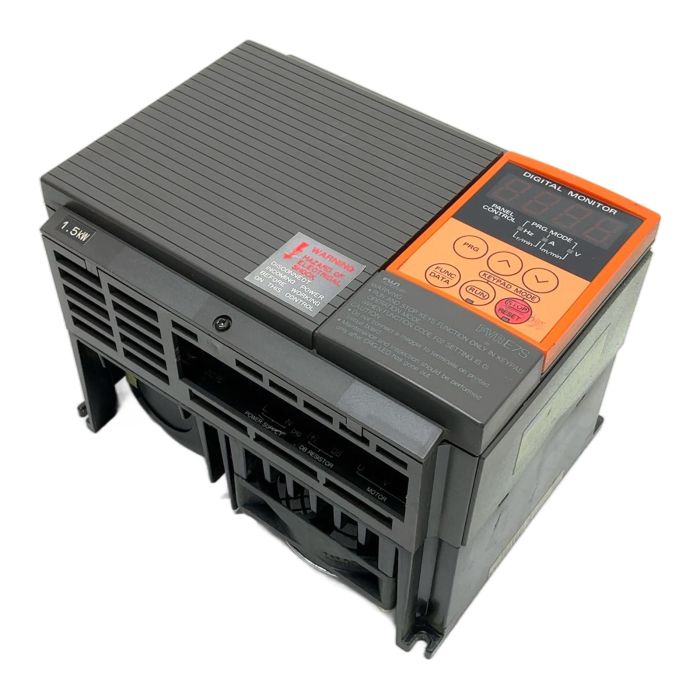

Fuji Electric Frequency Inverter 1.5kW FVR015E7S-7EX

Description

The FVR015E7S-7EX is a versatile and compact frequency inverter from Fuji Electric, designed for precise control of AC motors. This 1.5 kW model operates on a single-phase 200-240V input, making it ideal for applications where three-phase power is not available. Part of the reliable FVR-E7S series, it provides a cost-effective solution for speed control in various industrial machines.

Specifications

• Manufacturer: Fuji Electric
• Model: FVR015E7S-7EX
• Power Rating: 1.5 kW
• Input Voltage: 1-phase 200-240V AC, 50/60 Hz
• Output Voltage: 3-phase 200-240V AC
• Output Current: 8.0 A
• Output Frequency Range: 0.2 to 400 Hz
• Control Method: V/f Control
• Enclosure: IP20

Label Info

• Type: FVR015E7S-7EX
• Serial Number: 438577R355
• Input: 1PH 200-240V 50/60Hz
• Output: 3.0kVA 8.0A 0.2-400Hz

Application

This frequency inverter is suitable for a wide range of applications, including conveyor belts, fans, pumps, and other machinery requiring variable speed motor control in a compact form factor.

CO2 Impact

Opting for this reused Fuji Electric inverter instead of a new one prevents the emission of approximately 100 kg of CO2. This saving is a direct result of avoiding the energy-intensive manufacturing process of new electronics.

Availability

This is an obsolete item but available from our stock as a reliable spare part. Perfect for maintaining existing systems without costly upgrades. Order now from PLC2Day for expert support and fast delivery.

FAQ

This drive is designed for installations where only single-phase power is available. It internally converts the single-phase 230V input into a three-phase output to run a standard three-phase industrial motor, providing full variable speed control.

No, the keypads are generally not interchangeable between different drive series due to differences in firmware, communication protocols, and physical connectors. You must use the integrated keypad or a remote keypad specifically designed for the FVR-E7S series.

First, verify the motor's nameplate data (voltage, current, power) matches the drive's capacity. Second, ensure all programmed parameters from the old drive (like acceleration/deceleration times, motor data, and I/O assignments) are documented so they can be transferred to the replacement unit.
