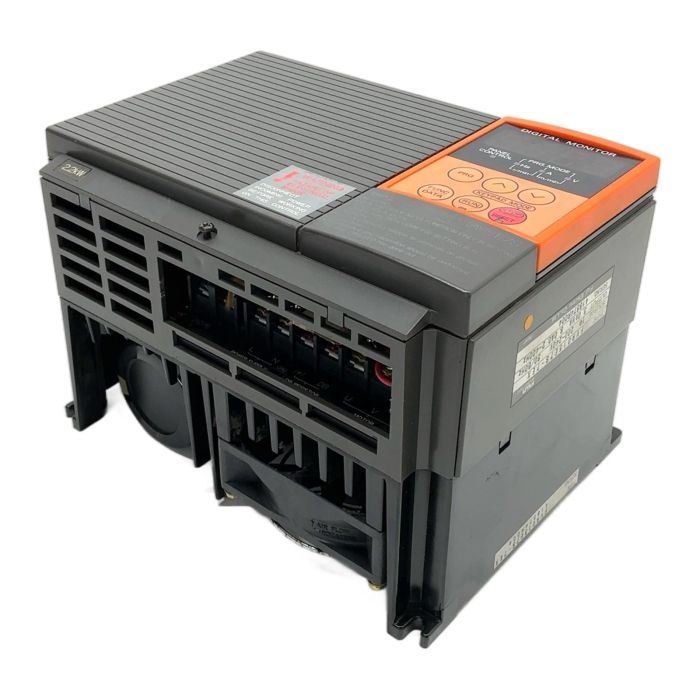

Fuji Electric FVR015E7S-7EX Frequency Inverter

Description

The Fuji Electric FVR015E7S-7EX is a versatile and reliable frequency inverter from the FRENIC-5000 E7S series. It is engineered for precise control of AC motors, making it suitable for a wide range of applications such as fans, pumps, conveyors, and other machinery. This unit provides stable performance and is a durable solution for industrial automation systems.

Specifications

• Manufacturer: Fuji Electric
• Type: FVR015E7S-7EX
• Series: FRENIC-5000 E7S
• Power Rating: 1.5 kW (based on model number)
• Input Voltage: 1-phase 200-240V AC, 50/60Hz
• Output: 3-phase, 3.0 kVA, 8.0 A
• Output Frequency: 2 to 400 Hz

Label Info

• TYPE: FVR015E7S-7EX
• SOURCE: 1-phase 200-240V 50/60Hz
• OUTPUT: 3.0kVA 8.0A 2-400Hz
• SER.NO: 418574R004

Application

This frequency inverter is ideal for retrofitting or maintaining existing systems that utilize the FRENIC-5000 series, as well as for new applications requiring simple and robust variable speed control.

Country of Origin

Made in Japan.

CO2 Impact

By purchasing this reused inverter, you are helping to avoid the CO2 emissions associated with manufacturing a new one, contributing to a more sustainable industrial environment.

Availability

This item is a tested, used product and is available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The rating plate on the unit is the most accurate source of information. This specific unit, FVR015E7S-7EX, is configured for a 1-phase 200-240V input, even if standard nomenclature suggests otherwise. Always wire according to the label.

The '015' in the model number typically indicates a drive for a 1.5kW motor under normal duty. The 3.0kVA is the apparent power rating. The actual real power (kW) depends on the power factor of the connected motor, but this drive can handle a motor up to its 8.0A current limit.

The FRENIC-5000 E7S series has basic digital and analog I/O for external control via PLCs. However, it lacks modern fieldbus communication protocols like EtherNet/IP or Profinet. Communication would need to be handled via hardwired signals.
