Fuji Electric FRENIC 5000G11 Frequency Inverter

Description

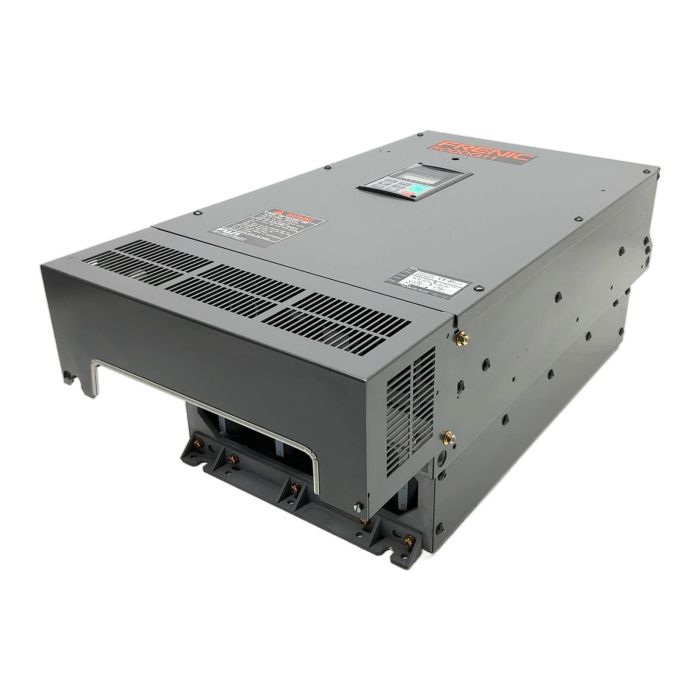

The Fuji Electric FRN30G11S-4EN is a high-performance frequency inverter from the FRENIC 5000G11 series. It is engineered for precise control of three-phase induction motors in a wide range of industrial applications. This drive offers dual ratings for both constant torque and variable torque loads, making it highly versatile. Its rugged construction ensures reliability in demanding environments.

Specifications

• Manufacturer: Fuji Electric
• Series: FRENIC 5000G11
• Model: FRN30G11S-4EN
• Input Voltage: 3-Phase 380-480V AC, 50/60Hz
• Output Voltage: 3-Phase 380-460V AC
• Output Frequency: 0.1 - 400Hz
• Constant Torque (CT) Rating: 30 kW / 60 A (Overload: 150% for 1 min)
• Variable Torque (VT) Rating: 37 kW / 75 A (Overload: 110% for 1 min)

Label Info

• Type: FRN30G11S-4EN
• Serial Number: 18HL69318R020-5H
• Source Current (CT/VT): 86 A / 104 A

Application

This frequency inverter is suitable for applications such as pumps, fans, conveyors, mixers, and other general-purpose machinery requiring variable speed control.

Country of Origin

Made in Japan.

CO2 Impact

By reusing this part, you contribute to a circular economy and help reduce CO2 emissions by an estimated 1400 kg, which is comparable to the emissions of a car driving 7000 km.

Availability

This is an obsolete item but is available from our stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

Yes, the keypad (operator panel) on the FRENIC 5000G11 series is typically detachable and can be mounted remotely using an extension cable for easier access when the drive is inside a control cabinet.

The Constant Torque (CT) rating (30kW, 60A) is for applications like conveyors or mixers that require consistent torque across all speeds. The Variable Torque (VT) rating (37kW, 75A) is for applications like pumps and fans, where the torque requirement is lower at lower speeds, allowing the drive to handle a larger motor.

No, the label clearly specifies a 3-phase (3PH) source input of 380-480V. It is not designed for single-phase input power.
