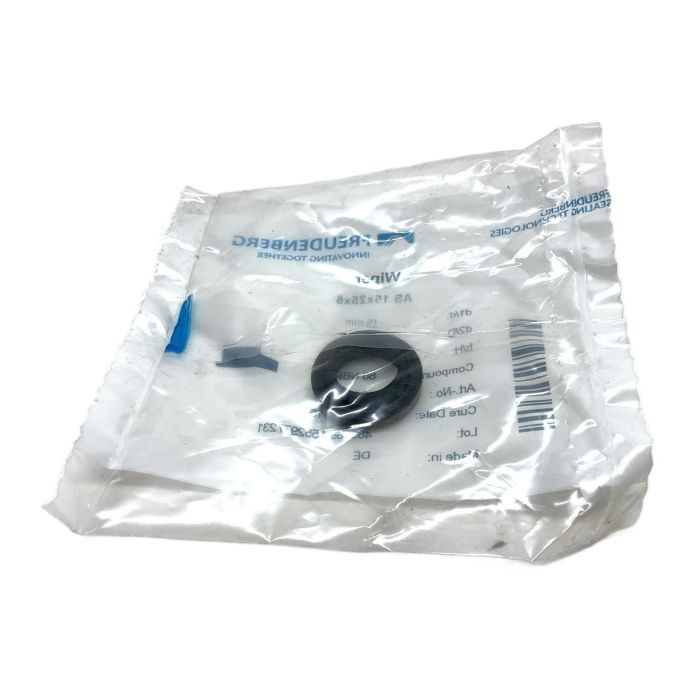

Freudenberg AS 15x25x5 Wiper Seal in 88 NBR 101

Product Description

The Freudenberg AS 15x25x5 is a single-acting wiper seal designed for reciprocating rods in hydraulic and pneumatic cylinders. Its primary function is to prevent dust, dirt, and moisture from entering the system, thereby protecting the guiding parts and extending the service life of the primary seals. Manufactured from high-quality 88 NBR 101 nitrile rubber, it offers excellent resistance to mineral oils and greases.

Specifications

• Manufacturer: Freudenberg Sealing Technologies
• Profile: AS Wiper
• Inner Diameter (d1): 15 mm
• Outer Diameter (d2): 25 mm
• Height (b): 5 mm
• Material Compound: 88 NBR 101
• Part Number: 40421694

Label Info

• Cure Date: 2021-11-15
• Lot: 463869 / 552977231

Application

Ideal for use in standard industrial cylinders, mobile hydraulics, and general machine building where effective rod wiping is required to maintain system cleanliness and reliability.

Country of Origin

Made in Germany (DE).

CO2 Impact

By purchasing this component, you are contributing to a circular economy and helping to prevent 0.06 kg of CO2 emissions. That's enough energy to charge your smartphone over 7 times.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the typical operating temperature range for the 88 NBR 101 material?

The 88 NBR 101 compound generally operates effectively in temperatures ranging from -30 deg C to +100 deg C, making it suitable for a wide range of standard hydraulic applications.

The AS profile is a standard wiper suitable for light to medium-duty applications. For heavy-duty environments with severe contamination, Freudenberg offers more robust profiles like the AUAS or P8 wipers, which feature a metal casing for better retention.

According to standards like ISO 2230, NBR-based seals (Group B rubbers) have a recommended shelf life of 7 years under proper storage conditions. With a cure date of 2021, this seal is well within its usable life.
