FREI Elektronik FGSE 145-125 Power Supply

Product Description

The FGSE 145-125 from FREI Elektronik is a robust open-frame DIN-rail mounted 24VDC 2.5A power supply. Designed for industrial automation applications and relay circuits, it offers high reliability and compliance with VDE standards.

Product Specifications

• Input Voltage: 220V/230V/240V, 50/60 Hz
• Output: 24V DC, 2.5 A
• Short-circuit protection with integrated 5x20 mm fuse
• Operating temperature: up to 60°C (T60/B)
• Mounting: DIN-rail compatible, IP00 open-frame
• Standards: VDE 0551, EN 61558-2-6, DIN 19240

Product Label Info

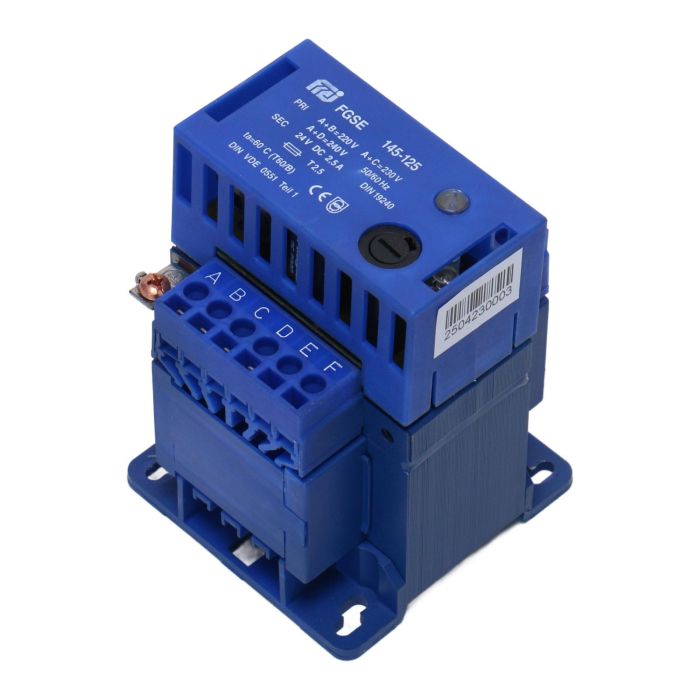

FREI FGSE, FGSE 145-125, PRI, A+B=220V A+C=230V, A+D=240V, 50/60 Hz, DIN 19240, SEC 24V DC 2,5A, + T25, ta-60 °C (T60/B) CEO, DIN VDE 0551 Teil 1, A B C D E F

Application

Used in industrial automation panels, relay control circuits, PLC environments requiring stable 24VDC power.

Advantages of This Product Over Others

German-made quality, high compliance to VDE norms, robust build and DIN-mounting make this a superior choice to many generic 24VDC units.

Method of Application

Install horizontally on DIN rail. Use terminal blocks for AC input and 24VDC output. Ensure ambient temperature remains under 60°C.

Safety Instructions

Disconnect power before servicing. Mount in a dry enclosure. Follow fuse rating as per manufacturer's specification.

Availability

This product is in stock at PLC2Day and ships same-day worldwide via UPS and DHL.
