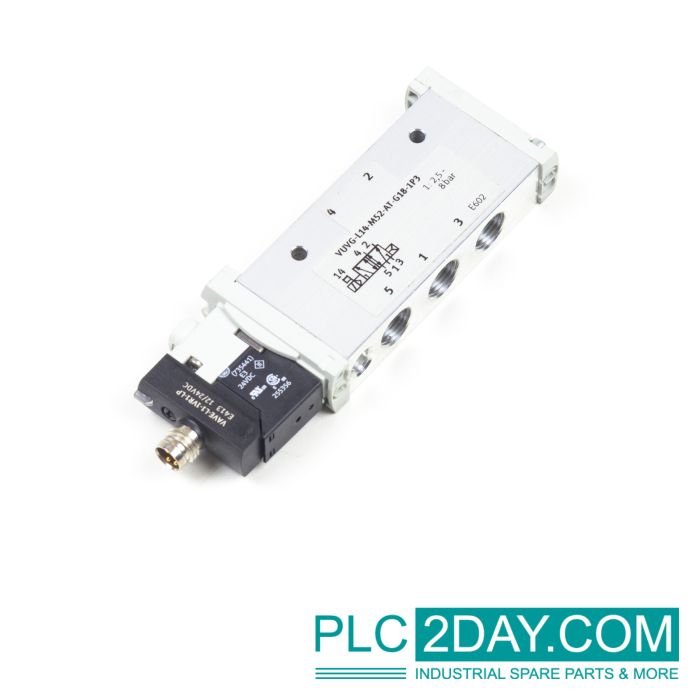

• VUVG-L14-M52-AT-G18-1P3 566499 | VUVGL14M52ATG181P3566499 • VUVG-L14-M52-AT-G18-1P3 (566499): Serialno: E902, Solenoid valve: Properties: Valve function: 5/2 monostable, Actuation type: Electrical, Valve size [mm] 14, Normal nominal flow [l/min]: 700 to 780, Construction set up: Piston pusher, Reset mode: Pneumatic spring, Protection category: IP40, IP65, With Sock, Permission: RCM mark, c CSA us (OL): c UL us - Recognized (OL), Nominal width [mm] 5,6, Exhaust function: Can be throttled, Sealing principle: Soft, installation position: rbitrary, Hand assist actuation: Ratcheting, Covered tentative, Control type: pilot operated, Control air supply: Internal, Überdeckung: positive Überdeckung, Control pressure [bar]: 2.5 to 8, Vacuum capable: no, Shifting time off [ms] 22, Shifting time on [ms]: 14, Power-on time: 100%, Max. positive test impulse at 0 signal [Mikrosekun]: 700, Max. negative test impulse for 1 signal [Mikrosekun], 900: Coil characteristic value 24 V DC: Low current phase 0.3 W, high current phase 1,0 W, 24 V DC: 1 , Permitted voltage oscillations: ± 10 %, Operating medium Compressed air to ISO 8573-1:2010 [7:4:4], Information about operating and control medium: Oiled operation possible (required in further operations), Oscillation strength: Transport use test with severity level 2 to FN 942017-4 and EN 60068-2-6, Shock resistance: Shock test with degree of severity 2 to FN 942017-5 and EN 60068-2-27, Limits ambient and media temperatur: -5 - 50 °C, Without holding current reduction, Corrosion resistant class KBK 2 - moderate corrosion stres, Medium temperature [°C]: -5 to 6, ambient temperature [°C]: -5 to 60
