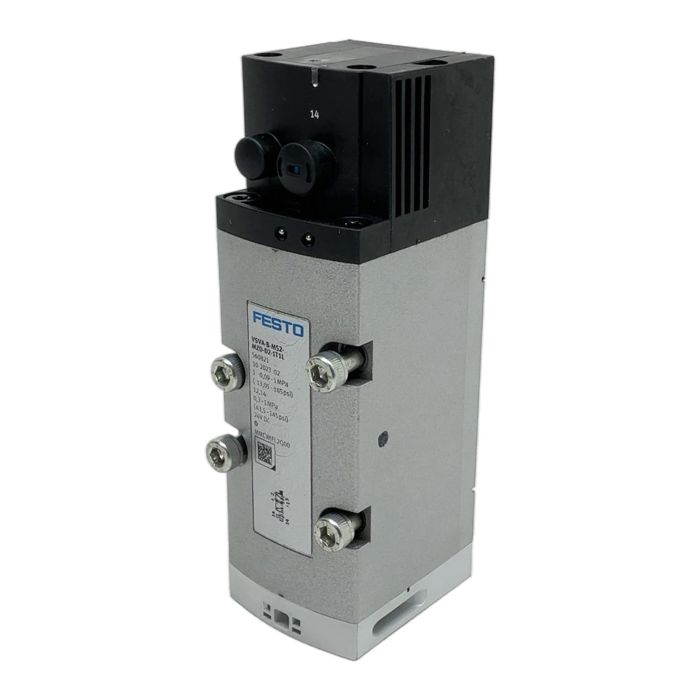

Festo VSVA-B-M52 Solenoid Valve

Description

The Festo VSVA-B-M52-MZD-D2-1T1L, part number 560821, is a high-performance solenoid valve designed for integration into pneumatic valve terminals like the VTSA and VTSA-F series. This 5/2-way monostable valve provides reliable switching for a wide range of automation tasks. It operates on a 24V DC supply and is capable of handling both positive pressure and vacuum applications, making it highly versatile. With its robust construction and IP65 rating, it ensures durability in demanding industrial environments.

Specifications

• Manufacturer: Festo
• Type: VSVA-B-M52-MZD-D2-1T1L
• Part Number: 560821
• Valve Function: 5/2-way, monostable
• Operating Voltage: 24V DC
• Coil Power Consumption: 4.6 W
• Operating Pressure (Port 1): -0.09 to 1 MPa (-13.05 to 145 psi)
• Operating Pressure (Ports 12, 14): 0.3 to 1 MPa (43.5 to 145 psi)
• Protection Class: IP65

Label Info

• Model: VSVA-B-M52-MZD-D2-1T1L
• Part No: 560821
• Production Date: 10-2023
• Coil P/N: (736407) R902

Application

This valve is ideal for use in factory automation, material handling, packaging machinery, and any application requiring precise pneumatic control via a valve manifold system.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component saves approximately 16.0 kg of CO2 compared to manufacturing a new one, contributing to a more sustainable operation.

Availability

This item is in stock and ready for dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The manual override allows you to actuate the valve manually without an electrical signal. This is useful for testing, system setup, or emergency operation. It can be a locking or non-locking type depending on the specific model.

Yes, the specifications for port 1 indicate an operating pressure range from -0.09 to 1 MPa, which means it can handle vacuum down to -0.9 bar.

This VSVA series valve is designed for manifold mounting. It connects to a VTSA or VTSA-F valve terminal sub-base which provides the air supply and electrical connections for multiple valves.
