Festo VABV-S2-25-G12-T1 Pneumatic Sub-Base

Description

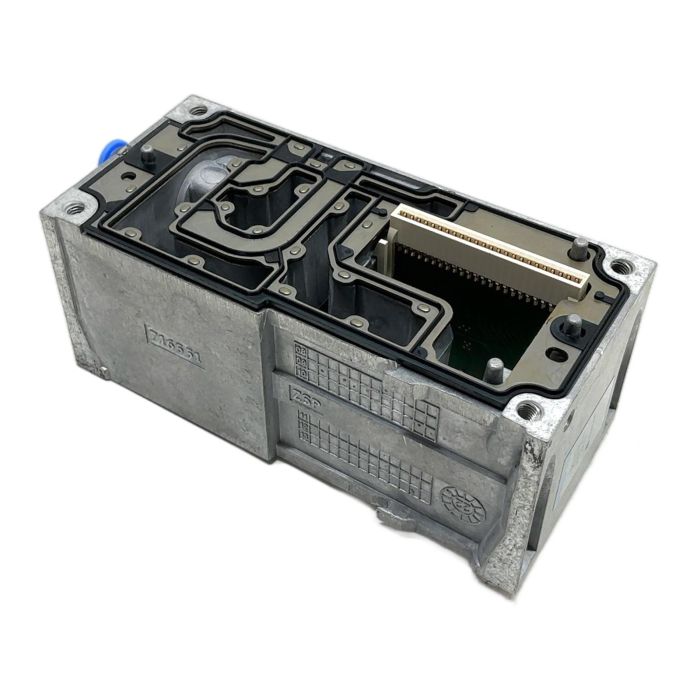

This is a Festo single sub-base, model VABV-S2-25-G12-T1, part number 560842. It is a key component for building or maintaining Festo VTUB series valve terminals. Designed for monostable valve operation, this sub-base provides a robust platform with G1/2 pneumatic connections for reliable performance in automated systems.

Specifications

• Manufacturer: Festo
• Part Number: 560842
• Model: VABV-S2-25-G12-T1
• Series: VTUB
• Type: Single Sub-base
• Pneumatic Connection: G1/2
• Valve Function: Monostable

Label Info

• Brand: FESTO
• Type: VABV-S2-25-G12-T1
• Mat-Nr: 560842
• Series Code: RD02
• Revision: Rev 01

Application

This sub-base is used in pneumatic control systems as a part of a VTUB valve terminal assembly. It is commonly found in factory automation, material handling, packaging machinery, and other industrial applications requiring precise pneumatic control.

Country of Origin

Germany

CO2 Impact

By purchasing this reused part, you are saving approximately 13.4 kg of CO2 emissions. This is comparable to the CO2 captured by over 0.6 trees in a year, making it a sustainable choice for your operations.

Availability

This item is in stock and ready for immediate dispatch. All our refurbished parts are thoroughly tested to ensure full functionality. Order now from PLC2Day for expert support and fast delivery.

FAQ

What is the function of a 'monostable' sub-base?
A monostable sub-base is designed for single-solenoid, spring-return valves. It directs the pilot air to actuate the valve in one direction, and the valve returns to its resting position via a mechanical spring when the solenoid is de-energized.

Can this VABV sub-base be used with the newer Festo VTUG valve series?
No, this VABV-S2 sub-base is specifically designed for the obsolete VTUB valve terminal series. It is not mechanically or electrically compatible with the modern VTUG series.

What is the typical operating pressure for this sub-base?
The VABV-S2 sub-base, as part of the VTUB system, is typically rated for an operating pressure range of -0.9 to 10 bar, depending on the specific valve installed on it.
