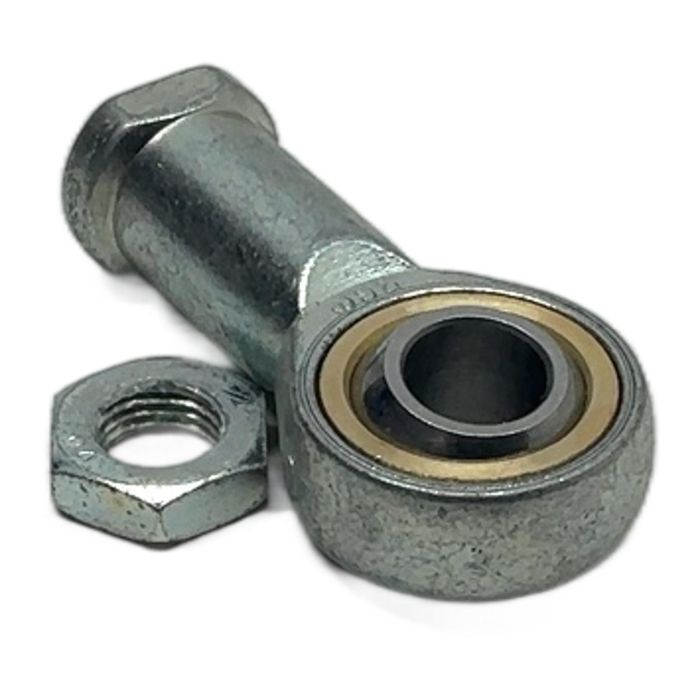

Festo SGS-M12x1,25 Rod Eye for Pneumatic Cylinders

Description

The Festo SGS-M12x1,25 is a high-quality rod eye designed for mounting on the piston rod of pneumatic cylinders. It provides a secure, pivoting connection point essential for various industrial automation and motion control applications. This component is made from galvanized steel for durability and corrosion resistance. It comes complete with a lock nut for secure fastening.

Specifications

• Manufacturer: Festo
• Type: SGS-M12x1,25
• Part Number: 9262 (Mat.-Nr. 009262)
• Connection Thread: M12 x 1.25 (female)
• Material: Galvanized Steel
• Corrosion resistance class CRC: 2 - Moderate corrosion stress
• Ambient temperature: -40 to 150 deg C

Label Info

• Serie: W7
• Includes OEM part numbers for VW, BMW, FORD, DB, OPEL.

Application

This rod eye is a standard accessory for Festo pneumatic cylinders and other linear actuators. It is used to connect the cylinder rod to a machine part, allowing for angular movement and compensating for misalignments in linkages.

Country of Origin

Germany

CO2 Impact

By purchasing this pre-owned component, you are contributing to a circular economy and helping to avoid approximately 0.17 kg of CO2 emissions associated with the production of a new part.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What is the main application for the Festo SGS-M12x1,25 rod eye?

Answer: This rod eye is primarily designed as a mounting accessory for the piston rods of pneumatic cylinders. It creates a pivoting connection, allowing for angular movement and compensating for minor misalignments in the mechanical linkage.

Answer: Yes, the housing of the SGS-M12x1,25 is made of galvanized steel, which provides good protection against corrosion in typical industrial environments. However, for applications in highly corrosive or washdown areas, a stainless steel version (CR) might be more suitable.

Answer: The M12x1.25 specification indicates a fine pitch thread. A standard coarse M12 thread has a pitch of 1.75 mm. The finer 1.25 mm pitch on this rod eye allows for more precise adjustments and provides a stronger, more vibration-resistant connection, which is crucial in dynamic pneumatic applications.
