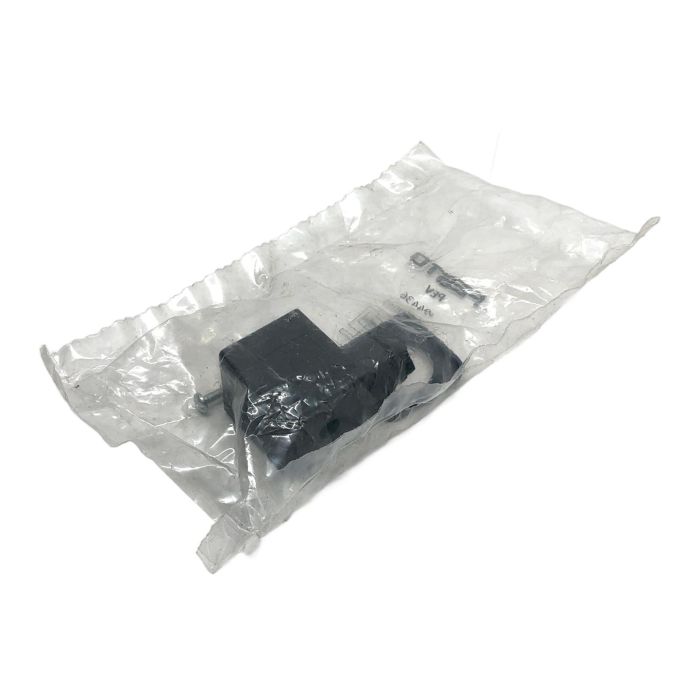

Festo Pressure Switch PEV-1/4-B-OD

Description

The Festo PEV-1/4-B-OD is a high-quality mechanical pressure switch designed for reliable monitoring of pressure in pneumatic systems. It features an adjustable switching point between 1 and 12 bar and provides a changeover contact for versatile control applications. Its robust mechanical design ensures a long service life and consistent performance in demanding industrial environments.

Specifications

• Manufacturer: Festo
• Type: PEV-1/4-B-OD
• Part Number: 594436
• Operating Pressure: 1 to 12 bar
• Pneumatic Connection: G1/4
• Switching Function: Changeover switch (SPDT)
• Electrical Connection: Plug connector to DIN EN 175301-803, Form A
• Medium: Compressed air

Label Info

• Brand: FESTO
• Model: PEV
• Part No: 594436
• Batch Code: A6(064)

Application

This pressure switch is ideal for applications such as monitoring pressure in compressed air networks, controlling cylinder positions based on pressure, or triggering alarms when pressure levels fall outside the desired range. It is commonly used in factory automation, machine building, and process control systems.

Country of Origin

Made in Germany.

CO2 Impact

Reusing this part saves approximately 6.0 kg of CO2, contributing to a more sustainable operation by avoiding the production of a new component.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The maximum operating pressure is 12 bar (1.2 MPa). The switching point can be adjusted within the 1 to 12 bar range.

The PEV-1/4-B-OD is a mechanical pressure switch. The diaphragm and spring mechanism operate without electrical power. Power is only required for the electrical circuit that the switch is controlling.

This pressure switch uses a standard plug connector according to DIN EN 175301-803, Form A. Ensure you have a compatible cable with this connector for installation.
