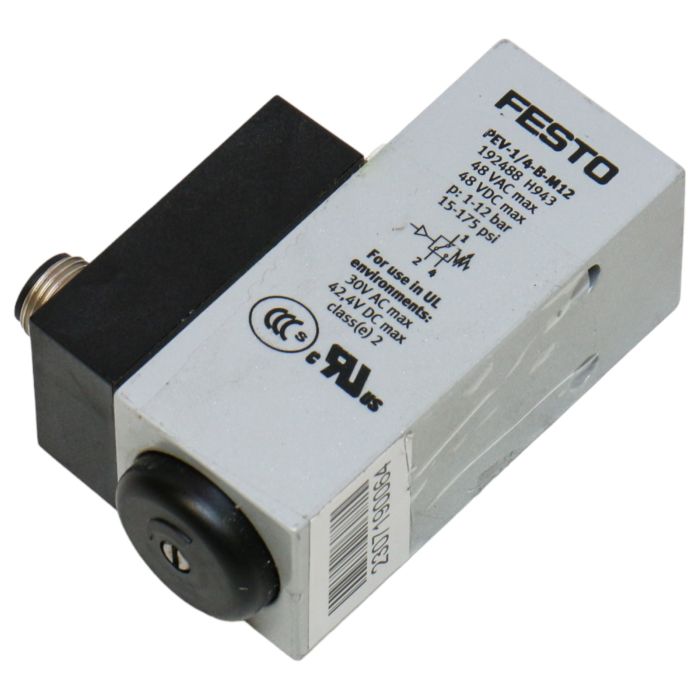

Pressure switch: 192488, Feature Value, Conforms to standard EN 60947-5-1, Symbol 00991472, Certification CCC, c UL us - Recognized (OL), CE marking (see declaration of conformity) As per EU low voltage directive, UKCA marking (see declaration of conformity) To UK instructions for electrical equipment, Explosion prevention and protection Observe the information on the certificate, Zone 1 (ATEX), Zone 2 (ATEX), Zone 21 (ATEX), Zone 22 (ATEX), Note on materials RoHS-compliant, Measured variable Relative pressure, Method of measurement Pneumatic/electric pressure transducer, Operating pressure 0.1 MPa ... 1.2 MPa, Operating pressure 1 bar ... 12 bar, Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-], Water, Information on operating and pilot media Operation with oil lubrication possible (required for further use), Temperature of medium -20 °C ... 80 °C, Ambient temperature -20 °C ... 80 °C, Switching element function Changeover switch, Max. switching frequency 3 Hz, Max. switching output voltage AC 48 V, Max. switching output voltage DC 48 V, Max. output current 4000 mA, Minimum load current 1 mA at 24 V, 10 mA at 10 V, 100 mA at 5V, Utilization category for inductive load AC-14, DC-13, Utilization category for ohmic load AC-12, DC-12, Electrical connection 4-pin, M12x1, Plug, as per EN 60947-5-2, Round design, Type of mounting With through-hole, Mounting position Any, 7/25/23 - Subject to change - Festo SE & Co. KG 1/2, Feature Value, Pneumatic connection G1/4, Product weight 194 g, Housing material Die-cast aluminum, Switching contact material Silver, Setting range threshold value 1 bar ... 12 bar, Degree of protection IP65, Corrosion resistance class (CRC) 2 - Moderate corrosion stress, LABS (PWIS) conformity VDMA24364-B1/B2-L

PEV-1/4-B-M12 192488 Festo is a high-quality industrial item that can be purchased at PLC2Day. This versatile product is widely used in various industrial applications. It is designed to meet the demands of different industries, ensuring efficient and reliable performance. With its exceptional quality and durability, the PEV-1/4-B-M12 192488 Festo is the perfect choice for industrial automation needs. Explore PLC2Day's extensive range of products to find this item and enhance your industrial processes.
