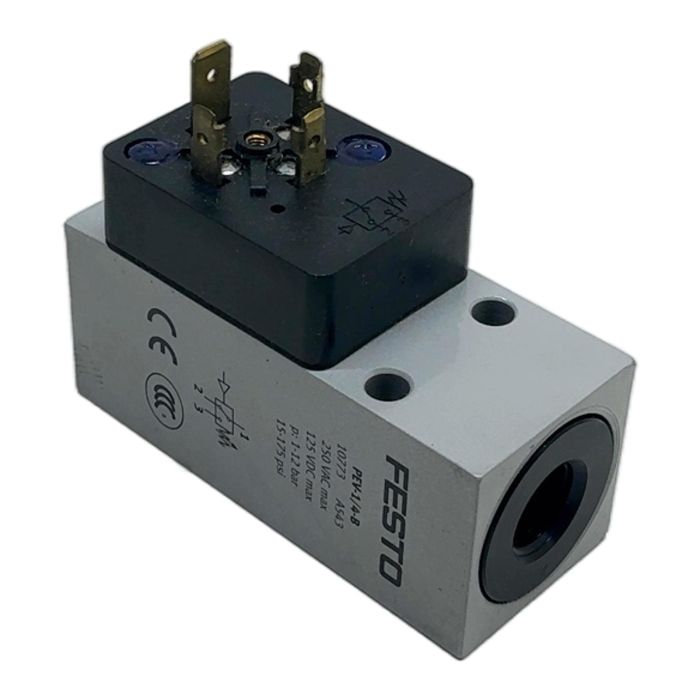

Festo PEV-1/4-B Pneumatic Pressure Switch

Description

The Festo PEV-1/4-B is a high-quality, adjustable pressure switch designed for reliable monitoring and control in pneumatic systems. It features a robust diaphragm mechanism and offers a wide adjustable pressure range, making it suitable for diverse industrial automation tasks. This component provides a changeover electrical contact (SPDT), allowing for flexible integration into control circuits as a normally open or normally closed switch.

Specifications

• Manufacturer: Festo
• Model: PEV-1/4-B
• Part Number: 10773
• Function: Diaphragm pressure switch
• Operating Pressure Range: 1 to 12 bar (15 to 175 psi)
• Pneumatic Connection: G1/4
• Switching Function: Changeover switch (SPDT)
• Maximum Voltage: 250V AC, 125V DC
• Medium: Compressed air, filtered

Label Info

• FESTO
• PEV-1/4-B
• 10773 A543
• p: 1-12 bar / 15-175 psi

Application

Ideal for process monitoring, pressure control in pneumatic actuators, system safety checks, and applications requiring a precise pressure-dependent electrical signal within general automation and machine building.

Country of Origin

This product is manufactured in Germany.

CO2 Impact

By choosing this reused part over a new one, you are contributing to a circular economy and saving approximately 10 kg of CO2, which is comparable to the emissions saved by not driving a car for 50 kilometers.

Availability

This product is a new-old-stock item. It is unused but may show signs of storage. The packaging may be opened or damaged. Order now from PLC2Day for expert support and fast delivery.

FAQ

The Festo PEV-1/4-B functions as a changeover switch. It has three electrical connections: common, normally open (NO), and normally closed (NC), allowing it to be integrated into various control circuits.

The switching pressure is adjusted using the setting screw located on the device, typically under a protective cap. Turning the screw clockwise increases the setpoint pressure, while turning it counter-clockwise decreases it. A pressure gauge should be used for accurate calibration.

No, the PEV-1/4-B is designed for a positive pressure range of 1 to 12 bar. It is not specified for use in vacuum (negative pressure) applications. For vacuum switching, Festo offers dedicated sensors like the VPEV or SPAN series.
