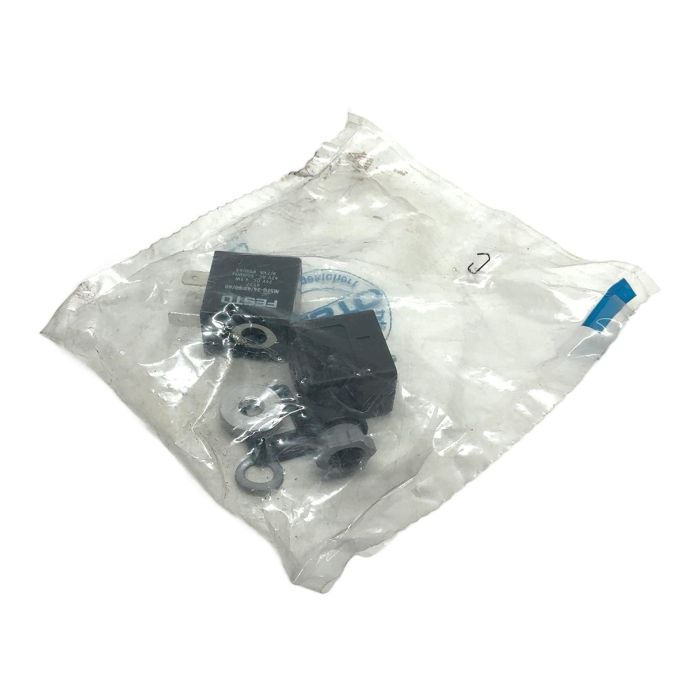

Festo Solenoid Coil for Pneumatic Valves

Description

The Festo MSFG-24/42-50/60 is a versatile and robust solenoid coil designed for the reliable operation of pneumatic solenoid valves. Its dual-voltage capability allows for use in systems with either 24V DC or 42V AC power supplies, providing flexibility in application design and maintenance. This coil is a standard component in many automated systems, known for its longevity and consistent performance.

Specifications

• Manufacturer: Festo
• Model: MSFG-24/42-50/60
• Part Number: 4527
• Operating Voltage: 24V DC or 42V AC (50/60 Hz)
• Power Consumption (DC): 4.5W
• Power Consumption (AC): 9VA (Inrush) / 7VA (Holding)
• Duty Cycle: 100%
• Protection Class: IP65 when assembled with a plug socket
• Electrical Connection: Per DIN EN 175301-803, form A

Label Info

• FESTO
• MSFG-24/42-50/60
• 4527
• 24V DC 4.5W
• 42V AC 50/60Hz 9/7VA
• IP00/65

Application

This solenoid coil is intended for use with various Festo valve series in industrial automation, material handling, packaging machinery, and process control applications where reliable pneumatic actuation is critical.

Country of Origin

Germany

CO2 Impact

By purchasing this pre-owned component, you help avoid the production of a new one, saving an estimated 2.4 kg of CO2. This saving is comparable to the emissions from a 12 km car journey.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The dual IP rating indicates the level of protection under different conditions. IP00 means the coil has no protection against contact or water when installed without a plug socket. When correctly installed with a compatible plug socket (e.g., Festo MSSD-F), it achieves an IP65 rating, making it dust-tight and protected against water jets.

No, this coil is designed for specific Festo valve series that require this form factor and electrical specification. Always check the valve's datasheet to ensure compatibility with solenoid coil part number 4527. It is commonly used with VUVS, VUVG, and other similar valve families.

The two values represent the inrush and holding power for AC operation. The higher value (9VA) is the inrush power, the initial power drawn to actuate the solenoid. The lower value (7VA) is the holding power, the continuous power required to keep the solenoid in the actuated position. This is a characteristic feature of AC solenoids.
