Festo MSD-A-Z Solenoid Valve Connector

Description

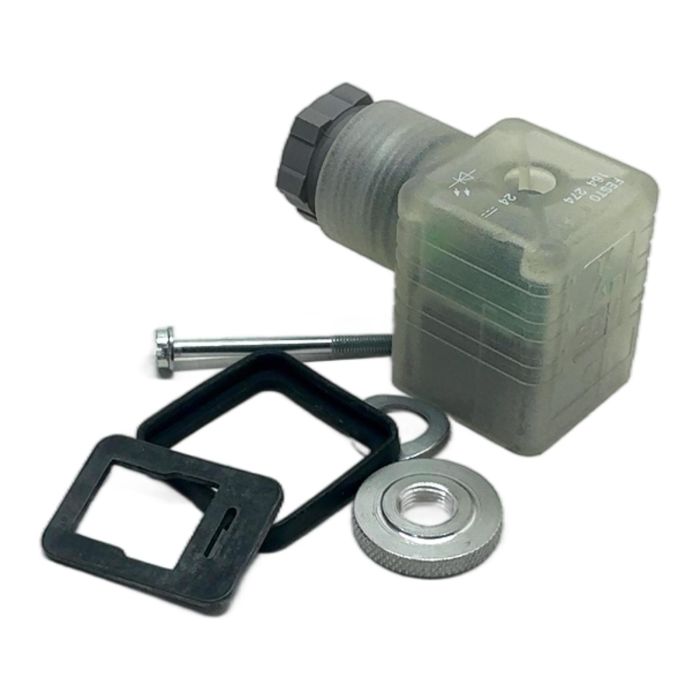

The Festo MSD-A-Z, part number 164274, is an angular plug socket designed for connecting solenoid valves in pneumatic systems. It operates on a 24V DC supply and features a built-in LED indicator for visual feedback on the switching status. This connector conforms to the standard DIN EN 175301-803 Form A, ensuring compatibility with a wide range of valves. The robust design provides IP65 protection, making it suitable for demanding industrial environments.

Specifications

• Manufacturer: Festo
• Type: MSD-A-Z
• Part Number: 164274
• Operating Voltage: 24V DC
• Electrical Connection: Plug pattern Form A to EN 175301-803
• Switching Status Indicator: Yellow LED
• Cable Gland: Pg9
• Permissible Cable Diameter: 6 mm to 8 mm
• Degree of Protection: IP65

Label Info

• Brand: FESTO
• Part No: 164 274
• Voltage: 24= (24V DC)

Application

This connector is widely used in automation technology to provide a secure and reliable electrical connection for pneumatic solenoid valves. It is ideal for applications in manufacturing, material handling, packaging, and process control systems where clear status indication is beneficial.

Country of Origin

This product is typically manufactured in Germany.

CO2 Impact

By purchasing this reused component, you are helping to avoid the production of a new one, which saves approximately 1.2 kg of CO2. This saving is comparable to the emissions from driving a standard car for 6 kilometers.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question? What does the 'Z' in the type designation MSD-A-Z signify?

The 'Z' in Festo's naming convention for this product indicates that it includes a Z-diode (suppressor diode) for circuit protection. This helps to suppress voltage spikes that can occur when the solenoid coil is de-energized.

No, this specific model, 164274, is designed exclusively for 24V DC operation. This is indicated by the "24=" marking and the integrated polarity-sensitive LED and protection diode. Using it with AC voltage or incorrect DC polarity will damage the internal circuit.

According to the Festo datasheet, the recommended tightening torque for the M3 central screw is 0.4 Nm. Overtightening can damage the connector or the valve's coil housing, while under-tightening can compromise the IP65 seal.
