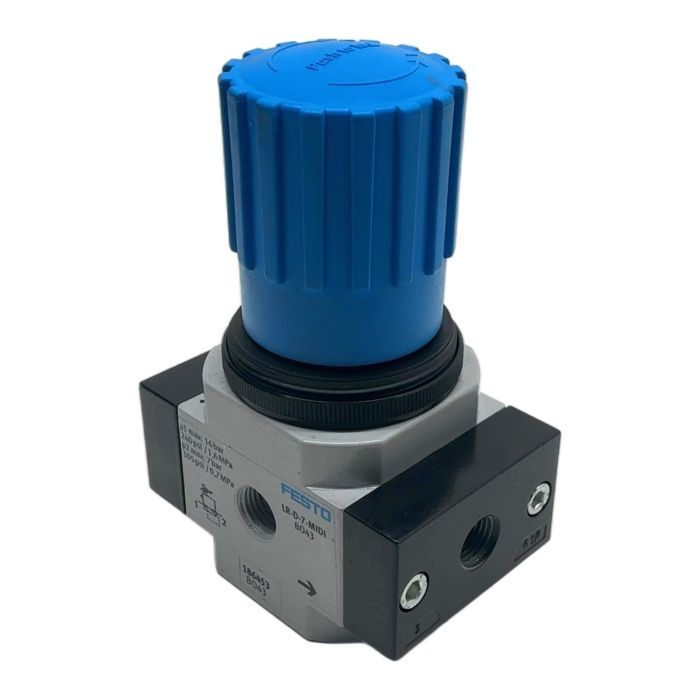

Festo Pressure Regulator 7 bar LR-D-7-MIDI 186453

Description

The Festo LR-D-7-MIDI is a high-performance pressure regulator from the D-series, designed for reliable and precise control of compressed air in industrial automation. This unit ensures a constant output pressure regardless of fluctuations in the input pressure. Its robust construction makes it suitable for demanding applications.

Specifications

• Manufacturer: Festo
• Part Number: 186453
• Type: LR-D-7-MIDI
• Series: D
• Size: MIDI
• Actuator Lock: Rotary knob with detent
• Maximum Inlet Pressure (p1): 16 bar / 1.6 MPa / 240 psi
• Pressure Regulation Range (p2): 0.5 to 7 bar / 0.05 to 0.7 MPa / 7.25 to 105 psi
• Standard Nominal Flow Rate: 3500 l/min
• Pneumatic Connection: G1/2 (Note: confirm thread type before installation)

Label Info

• p1 max: 16 bar / 240 psi / 1.6 MPa
• p2 max: 7 bar / 105 psi / 0.7 MPa
• Model: LR-D-7-MIDI
• Part No: 186453
• Series Code: B043

Application

This pressure regulator is widely used in pneumatic systems to protect downstream equipment from excessive pressure, reduce air consumption, and ensure consistent operation of cylinders, valves, and other pneumatic components.

Country of Origin

Germany

CO2 Impact

By purchasing this reconditioned item, you are helping to prevent the emission of approximately 11 kg of CO2. This saving is equivalent to the CO2 absorbed by a mature tree over a year.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The LR-D-7-MIDI regulator is available with various standard port sizes. While not marked on the body, the most common connection for the MIDI size is G1/2 or G3/8. It is crucial to measure the port threads before installation to ensure compatibility with your fittings.

Yes, this model can be operated without a pressure gauge. The front port, typically used for a gauge, is sealed with a plug. For applications requiring precise pressure monitoring, a compatible G1/8 gauge can be easily installed in this port.

The blue rotary knob features an integrated lock. To set the pressure, pull the knob upwards to unlock it. Turn the knob to adjust the pressure to the desired level. Once set, push the knob down to lock it in place, preventing accidental adjustments.
