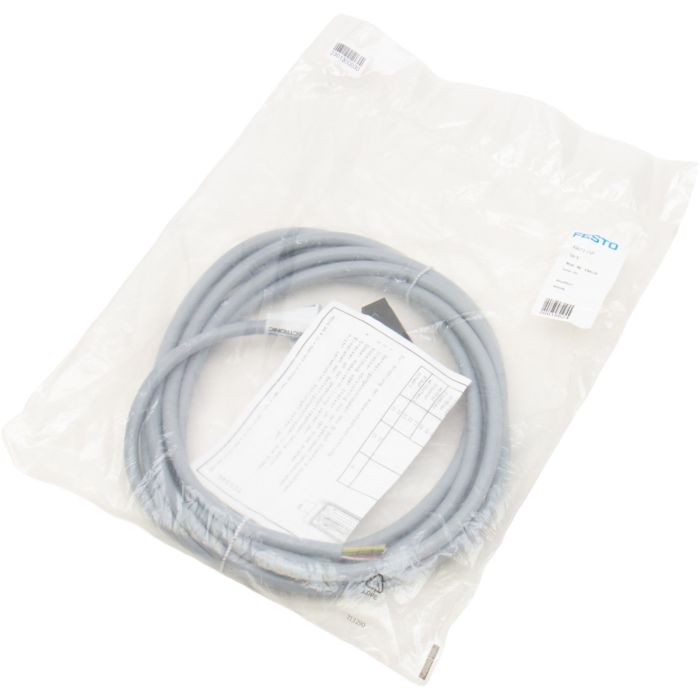

Connection cable: GTIN: 4052568112967, Serie: H5, Feature Values: Based on norm DIN 41652, Cable designation With accessories, Contact durability 50, Product weight 672 g, Electrical connection 1, function Field device end, Electrical connection 1, design Rectangular, Electrical connection 1, connection type Socket, Electrical connection 1, cable outlet Angled, Electrical connection 1, connection technology Sub-D, Electrical connection 1, number of pins/wires 25, Electrical connection 1, occupied pins/wires 18, Electrical connection 1, type of mounting 2x M3 screw, Electrical connection for input 1, connection pattern 00995642, Electrical connection 2, function Control side, Electrical connection 2, connection type Cable, Electrical connection 2, connection technology Open end, Electrical connection 2, number of pins/wires 18, Electrical connection 2, occupied pins/wires 18, DC operating voltage range 0 V ... 30 V, Nominal operating voltage DC 24 V, Current rating at 40°C 3 A, Surge resistance 1 kV, Cable length 5 m, Cable characteristic Standard, Bending radius, fixed cable installation ≥45 mm, Bending radius, flexible cable installation ≥90 mm, Cable diameter 8.5 mm, Cable diameter tolerance ± 0.5 mm, Cable design 18 x 0.34 mm², Nominal conductor cross section 0.34 mm², Wire ends Cut off bluntly, Degree of protection IP65, Note on degree of protection In mounted state, Ambient temperature -25 °C ... 70 °C, Ambient temperature with flexible cable installation -5 °C ... 70 °C, 1/30/23 - Subject to change - Festo SE & Co. KG 1/2, Storage temperature -25 °C ... 75 °C, CE marking (see declaration of conformity) As per EU RoHS directive, UKCA marking (see declaration of conformity) To UK RoHS instructions, LABS (PWIS) conformity VDMA24364-B2-L, Note on materials RoHS-compliant, Contamination level 3, Material of cable sheath PVC, Color cable sheath Gray, Housing material PA,, Seals material NBR, Material of pin contacts Copper alloy, gold-plated,
