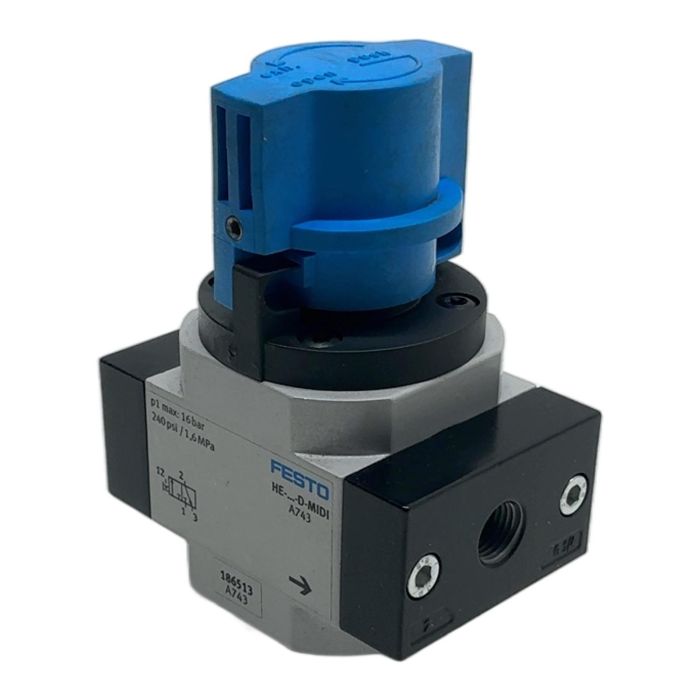

Festo On-off Valve 16 bar HE-1/4-D-MIDI 186513

Description

The Festo HE-1/4-D-MIDI is a high-quality, manually operated on-off valve, also known as a shut-off or start-up valve. It belongs to the D-series of air preparation components and serves as the primary means to pressurize and vent pneumatic systems safely. Its 3/2-way, normally closed function ensures that the system is depressurized when the valve is in the off position. The rotary knob is lockable, providing a crucial safety feature for maintenance and service work (lock-out/tag-out).

Specifications

• Manufacturer: Festo
• Part Number: 186513
• Model: HE-1/4-D-MIDI
• Valve Function: 3/2-way, monostable, closed
• Actuation: Manual rotary knob with locking facility
• Operating Pressure: 0 to 16 bar (0 to 1.6 MPa)
• Pneumatic Connection: G1/4 female thread
• Standard Nominal Flow Rate: 1300 l/min
• Housing Material: Die-cast aluminum

Label Info

• FESTO HE-...-D-MIDI
• Mat.-Nr.: 186513
• Serie: BO43
• p1 max: 16 bar / 240 psi / 1.6 MPa

Application

This valve is typically installed as the first component in a Festo D-series FRL (Filter-Regulator-Lubricator) combination. It is essential for isolating sections of a pneumatic circuit for maintenance, safely starting up machinery, and for emergency stop functions where rapid depressurization is required.

Country of Origin

Germany

CO2 Impact

Choosing this reused component over a new one saves approximately 5.0 kg of CO2, which is comparable to the emissions from driving a standard car for 25 kilometers.

Availability

This item is in stock and available for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

Question?

Can this valve be locked in the closed position?

Yes, the HE-1/4-D-MIDI features an integrated locking facility. You can use a standard padlock to secure the rotary knob in the vented (off) position, preventing unauthorized or accidental system start-up.

What is the flow direction for this valve?

The valve has a clear arrow marking on the body indicating the correct direction of flow. Air should enter at port 1 and exit at port 2. Reversing the flow is not recommended and can impair function.

Is this valve suitable for vacuum applications?

No, the Festo HE-1/4-D-MIDI is designed for positive pressure applications from 0 to 16 bar. It is not rated for use in vacuum systems.
