Festo Branching Module FRM-D-MIDI

Description

The Festo FRM-D-MIDI, with part number 186523, is a high-quality branching module designed for the D-Series MIDI air preparation units. It allows for the distribution of compressed air from a main line to multiple sub-circuits, providing flexibility in system design. This module is ideal for applications requiring multiple air takeoff points with conditioned air. Its robust die-cast aluminum construction ensures durability and a long service life in demanding industrial environments.

Specifications

• Manufacturer: Festo
• Series: D-MIDI
• Type: Branching Module
• Model: FRM-D-MIDI
• Part Number: 186523
• Maximum Operating Pressure: 16 bar / 1.6 MPa / 240 psi
• Pneumatic Connection (Main): G1/2
• Pneumatic Connection (Branch): G1/4
• Housing Material: Die-cast aluminum
• Assembly position: Any

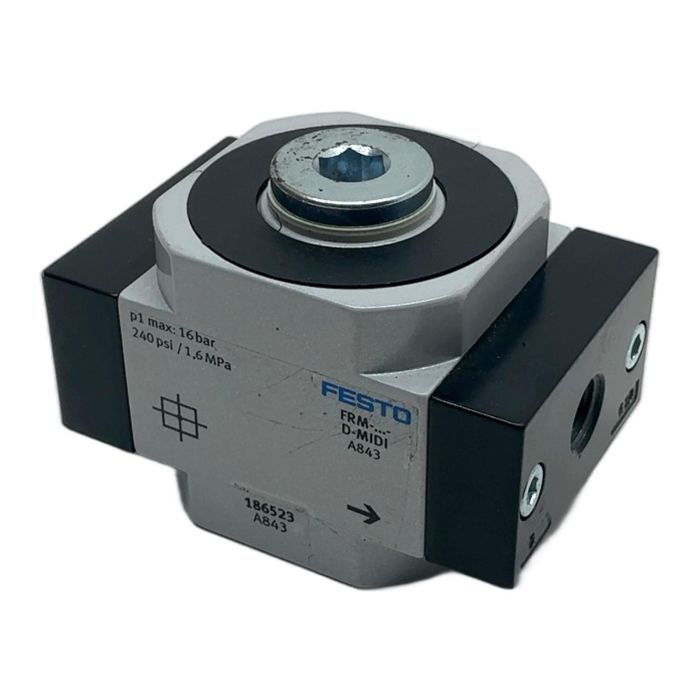

Label Info

• p1 max: 16bar
• 240 psi / 1.6MPa
• Type: FRM-...-D-MIDI
• Part No: 186523
• Series Code: A843

Application

This module is used in pneumatic control systems to create branches for untreated or treated compressed air. It is a key component in constructing modular Festo FRL (Filter-Regulator-Lubricator) service units, commonly found in factory automation, packaging machinery, and manufacturing lines.

Country of Origin

Made in Germany.

CO2 Impact

By choosing this pre-owned component, you are helping to avoid the 3.0 kg of CO2 emissions associated with the production of a new one. This sustainable choice supports a circular economy and reduces industrial waste.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The grid symbol on Festo air preparation units indicates a filter or conditioning component. In the context of the FRM-D-MIDI branching module, it signifies that the air passing through should be pre-conditioned, as this module is part of a larger Filter-Regulator-Lubricator (FRL) assembly.

While it can technically be used standalone to split an air line, the FRM-D-MIDI is specifically designed for modular integration with other Festo D-Series MIDI components like filters, regulators, and lubricators. It uses connecting plates and seals for a seamless, leak-proof assembly within a service unit combination.

The Festo FRM-D-MIDI (186523) typically features G1/2 threads for the main inlet and outlet ports, and one or more smaller G1/4 threaded ports on the side for branching off smaller air lines or for mounting pressure gauges. Always verify the specific configuration for your application.
