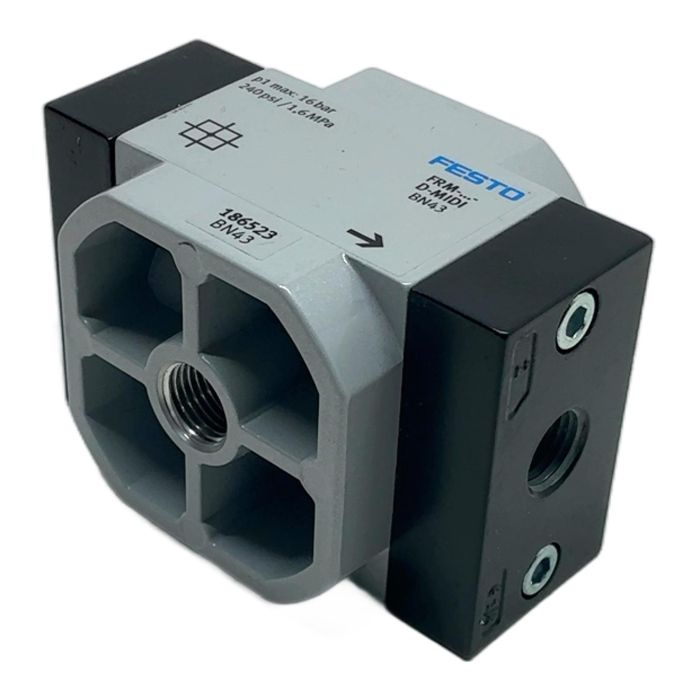

Festo Branching Module G1/4 FRM-1/4-D-MIDI 186523

Description

The Festo FRM-1/4-D-MIDI is a high-quality branching module designed for integration into D-Series MIDI air service units. It provides a convenient way to tap into a main airline to supply filtered, unlubricated compressed air to additional pneumatic circuits. This module is essential for creating complex pneumatic systems that require multiple air supply points from a single source.

Specifications

• Manufacturer: Festo
• Type: FRM-1/4-D-MIDI
• Part Number: 186523
• Series: D-Series
• Size: MIDI
• Pneumatic Connection: G1/4
• Maximum Operating Pressure: 16 bar / 1.6 MPa / 240 psi
• Mounting Type: Line installation
• Assembly position: Any

Label Info

• Brand: FESTO
• Model: FRM-1/4-D-MIDI
• Material No.: 186523
• Series: BN43

Application

This module is typically used in industrial automation, machine building, and process control where compressed air needs to be distributed efficiently. It is part of an FRL (Filter-Regulator-Lubricator) assembly, allowing for a clean and structured system layout.

Country of Origin

Made in Germany.

CO2 Impact

Opting for this component helps avoid approximately 4.8 kg of CO2 emissions compared to producing a new one. This saving is equivalent to the CO2 absorbed by a mature tree over several months.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The FRM-1/4-D-MIDI is a branching module used in Festo's D-Series air preparation units. Its primary function is to provide an unlubricated, filtered, and regulated compressed air outlet from the main airline, allowing you to branch off and supply air to additional pneumatic circuits or devices.

While it can technically be used standalone by connecting it directly to an air supply, it is designed to be integrated into a Festo D-Series MIDI service unit combination. It connects directly to other modules like filters (LF), regulators (LR), and lubricators (LOE) using connecting kits for a seamless and leak-free assembly.

The G1/4 designation refers to the thread type and size of the pneumatic connection ports, which is a standard British Standard Pipe Parallel (BSPP) thread with a nominal diameter of 1/4 inch. This ensures compatibility with a wide range of standard pneumatic fittings and tubing for easy integration into your system.
