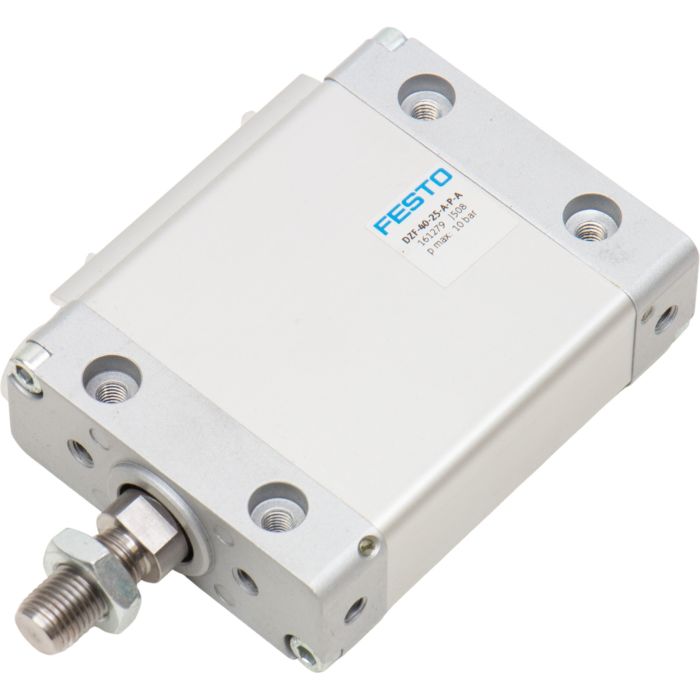

Flat cylinder, GTIN: 4052568128876, Stroke: 25 mm, Piston diameter: 40 mm, Equivalent diameter: Torsional backlash at piston rod +/-: 0.6 deg, Cushioning: Elastic cushioning rings/plates at both ends, Mounting position: optional, Mode of operation: Double-acting, Design: Piston, Piston rod: Position detection, Via proximity switch: Symbol: 00991217, Protection against torque/guide: Oval piston, Operating pressure: 0.1 MPa ... 1 MPa, Operating pressure: 1 bar ... 10 bar, Operating medium: Compressed air to ISO 8573-1:2010 [7:4:4, Note on operating and pilot medium, Lubricated operation possible (in which case lubricated operation will always be required): Corrosion resistance class CRC, 2 - Moderate corrosion stress; LABS (PWIS) conformity, VDMA24364-B1/B2-L; Ambient temperature; -20 °C ... 80 °C, Max. torque for protection against torsion; 1 Nm Theoretical force at 0.6 MPa (6 bar, 87 psi), return stroke 633 N, Theoretical force at 0.6 MPa (6 bar, 87 psi), advance stroke; 754 N. Moving mass for 0 mm stroke; 120 g, Additional moving mass per 10 mm stroke; 16 g, Additional weight per 10 mm stroke; 40 g, Basic weight for 0 mm stroke; 480 g, Type of mounting; Via female thread, With accessories; Either, Pneumatic connection; G1/8, Material cover; Wrought aluminium alloy, Material seals NBR, TPE-U(PU), Material housing; Aluminium, Smooth anodised; Material piston rod, High-alloy steel.
