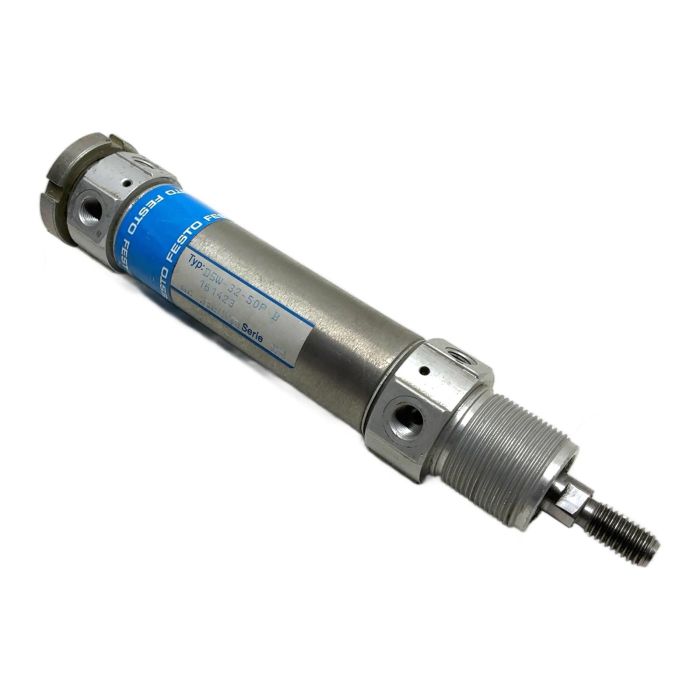

Festo DSW-32-50P B Pneumatic Round Cylinder

Description

The Festo DSW-32-50P B is a high-quality, double-acting pneumatic round cylinder designed for reliable operation in various industrial applications. With a piston diameter of 32 mm and a stroke of 50 mm, it provides precise linear motion. The integrated adjustable pneumatic cushioning at both ends ensures smooth deceleration, reducing wear and extending the service life of both the cylinder and the machine. This cylinder is engineered to withstand pressures up to 10 bar.

Specifications

• Manufacturer: Festo
• Type: Pneumatic Round Cylinder
• Model: DSW-32-50P B
• Part Number: 161423
• Piston Diameter (Bore): 32 mm
• Stroke Length: 50 mm
• Action: Double-acting
• Cushioning: Pneumatic, adjustable at both ends
• Maximum Operating Pressure: 10 bar / 145 psi
• Piston Rod Thread: M10x1.25

Label Info

• Typ: DSW-32-50P B
• Part No: 161423
• Max Pressure: 10 bar / 145psi

Application

This cylinder is ideal for automation tasks requiring linear movement, such as clamping, positioning, pushing, and lifting in manufacturing, packaging, and material handling systems.

Country of Origin

Made in Germany.

CO2 Impact

Opting for a reconditioned component like this Festo cylinder saves approximately 4.0 kg of CO2 compared to manufacturing a new one. This choice supports sustainable industrial practices.

Availability

This item is in stock and ready for immediate dispatch. Order now from PLC2Day for expert support and fast delivery.

FAQ

The 'P' indicates that the cylinder is equipped with adjustable pneumatic cushioning at both ends. This feature allows for controlled deceleration of the piston at the end of its stroke, reducing impact and noise.

No, the standard DSW series cylinder is not designed for use with proximity sensors for position detection. For applications requiring position sensing, the Festo DSNU series with a magnetic piston (variant 'A') is recommended.

The recommended medium is compressed air, filtered and optionally lubricated. While the maximum pressure is 10 bar, for optimal performance and longevity, it is often best to operate within a range of 4 to 8 bar depending on the application's force requirements.
