Festo DSNU Series Pneumatic Cylinder

Description

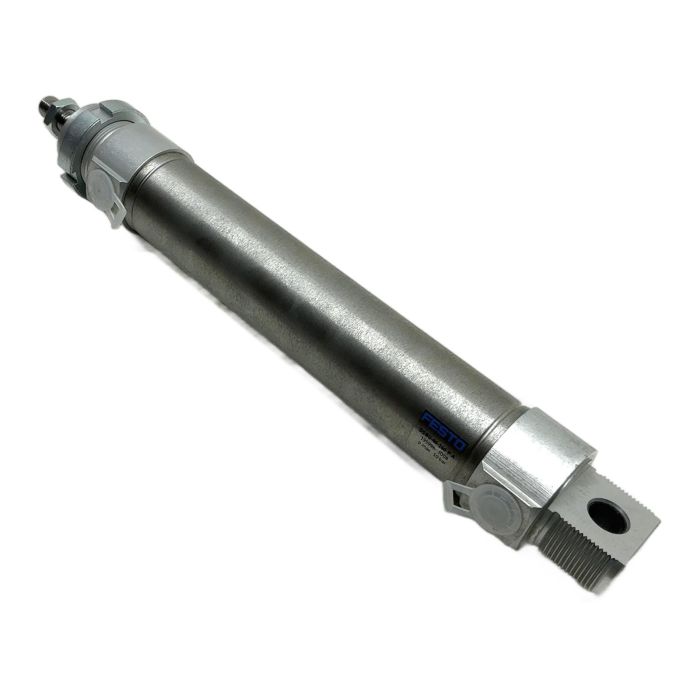

The Festo DSNU-40-160-P-A is a high-quality ISO standard round cylinder designed for precision and durability in industrial automation. With a 40 mm piston diameter and a 160 mm stroke, it delivers reliable linear force for various applications. This model features elastic cushioning at both ends for smooth, low-impact operation and includes a magnet for position sensing.

Specifications

• Manufacturer: Festo
• Series: DSNU
• Piston Diameter: 40 mm
• Stroke Length: 160 mm
• Cushioning: Elastic cushioning rings/plates at both ends (Code: P)
• Position Sensing: With magnet for proximity sensors (Code: A)
• Operating Pressure: up to 10 bar
• Conforms to Standard: ISO 6432
• Piston Rod Material: High-alloy stainless steel

Label Info

• Type: DSNU-40-160-P-A
• Part Number: 195996
• Serial Code: JD08
• Max Pressure: 10 bar

Application

Ideal for sorting, clamping, feeding, and positioning tasks in manufacturing, packaging, and material handling systems where space-efficient and reliable pneumatic actuation is required.

Country of Origin

Manufactured by Festo in Germany.

CO2 Impact

Choosing this pre-owned cylinder saves approximately 8.0 kg of CO2 compared to a new one, contributing to a more sustainable operation.

Availability

In stock. Order now from PLC2Day for expert support and fast delivery.

FAQ

What does the "-P-A" suffix in DSNU-40-160-P-A signify?
The "-P-" indicates that the cylinder is equipped with elastic cushioning rings/plates at both ends to reduce impact and noise. The "-A" signifies that the piston contains a magnet for position sensing with external proximity sensors.

What is the required compressed air quality for this cylinder?
According to Festo standards, this cylinder operates best with compressed air according to ISO 8573-1:2010 [7:4:4]. This means the air should be filtered and can be lubricated or non-lubricated. Using lubricated air will require continuous lubrication for the cylinder's lifespan.

Can this cylinder be operated without lubrication?
Yes, the DSNU series is designed for both lubricated and non-lubricated operation. However, if you start using lubricated air, you must continue to do so for the rest of the cylinder's operational life to prevent seals from drying out.
